Door Locks

WIESS- Stainless Steel European Mortise Bathroom Lockcase

P800 Models: 5578 / 6078 / 6578

Heavy-duty bathroom lockcase with latch and privacy deadbolt functionality, stainless steel components, and a 4-hour fire rating – designed for wooden and steel doors.

Key Specifications

Case

• Material: Stamped steel, 1.5mm thick, zinc plated

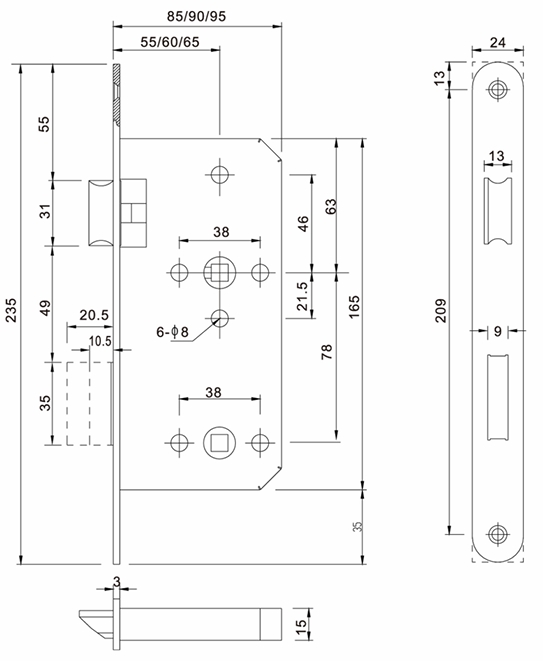

• Dimensions: 165mm x 85/90/95mm x 15mm

Front Plate

• Material: SUS304 stainless steel, 3mm thick
• Standard Size: 235mm x 24mm (square-end), round-end optional

Latch

• Material: SUS304 stainless steel
• Throw: 13mm
• Reversible: Yes

Deadbolt

• Material: SUS304 stainless steel
• Throw: 20.5mm (single throw projection)

Follower

• Lever support springs on square 8mm spindle
• Second square 8mm spindle below for privacy set

Backset Options

• 55mm, 60mm, or 65mm

Handing

• Non-handed, field reversible

Finish

• Satin stainless steel (32D)

Function

• Latch operated by lever from both sides
• Deadbolt operated by thumb turn from inside or emergency release from outside

Compliance

• Certified by EN12209 & EN1634-1
• 4-hour fire rated

Suitable For

• Wooden doors
• Steel doors
• Bathroom and privacy applications
