Door Locks

WIESS- Stainless Steel European Mortise DeadBolt Lockcase

E700 Models: 5572 / 6072 / 6572

Heavy-duty deadbolt lockcase with stainless steel components, European cylinder preparation, and a 4-hour fire rating – designed for wooden and steel doors.

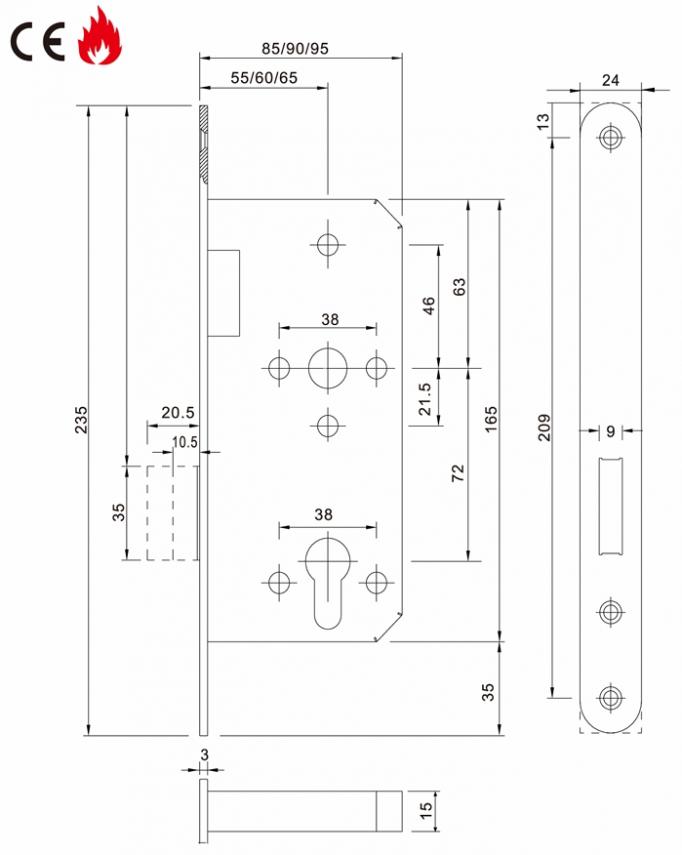

Key Specifications

Case

  • Material: Stamped steel, 1.5mm thick, zinc plated
  • Dimensions: 165mm x 85/90/95mm x 15mm

Front Plate

  • Material: SUS304 stainless steel, 3mm thick
  • Standard Size: 235mm x 24mm (square-end), round-end optional

Deadbolt

  • Material: SUS304 stainless steel
  • Maximum Throw: 20.5mm (double throw projection)

Backset Options

  • 55mm, 60mm, or 65mm

Handing

  • Non-handed, field reversible

Finish

  • Satin stainless steel (32D)

Cylinder Preparation

  • Prepared for Euro-profile cylinder with standard fixings

Function

  • Deadbolt operated by key from outside or thumb turn from inside

Compliance

  • Certified by EN12209 & EN1634-1
  • 4-hour fire rated

Suitable For

  • Wooden doors
  • Steel doors

EN12209 & EN1634-1 certified. 4-hour fire rating. Double throw deadbolt. Euro-profile cylinder ready. Non-handed. Multiple backset options. SUS304 stainless steel components. Contact us for more information or to place an order.
