WIESS- Stainless Steel European Mortise Entrance Lockcase

E800 Models: 5572 / 6072 / 6572 / 7072 / 8072

Heavy-duty entrance lockcase with latch and deadbolt functionality, stainless steel components, European cylinder preparation, and a 4-hour fire rating – designed for wooden and steel doors.

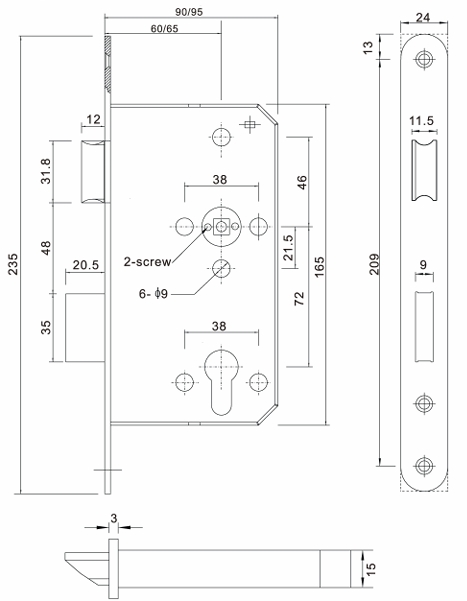

Key Specifications

Case

• Material: Stamped steel, 1.5mm thick, zinc plated
• Dimensions: 165mm x 85/90/95mm x 15mm

Front Plate

• Material: SUS304 stainless steel, 3mm thick
• Standard Size: 235mm x 24mm (square-end), round-end optional

Latch

• Material: SUS304 stainless steel
• Throw: 13mm
• Reversible: Yes

Deadbolt

• Material: SUS304 stainless steel
• Maximum Throw: 20.5mm (double throw projection)

Follower

• Lever support springs on square 8mm spindle

Backset Options

• 55mm, 60mm, 65mm, 70mm, or 80mm

Handing

• Non-handed, field reversible

Finish

• Satin stainless steel (32D)

Cylinder Preparation

• Prepared for Euro-profile cylinder with standard fixings

Function

• Latch operated by lever from both sides
• Deadbolt operated by key from outside or thumb turn from inside

Compliance

• Certified by EN12209 & EN1634-1
• 4-hour fire rated

Suitable For

• Wooden doors
• Steel doors

EN12209 & EN1634-1 certified. 4-hour fire rating. Latch + deadbolt combination. Euro-profile cylinder ready. Non-handed. Multiple backset options. SUS304 stainless steel components. Contact us for more information or to place an order.
