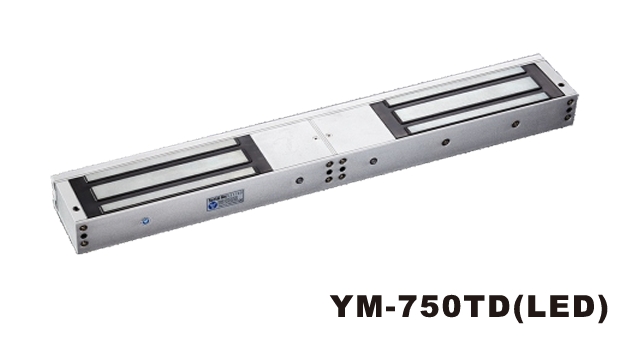

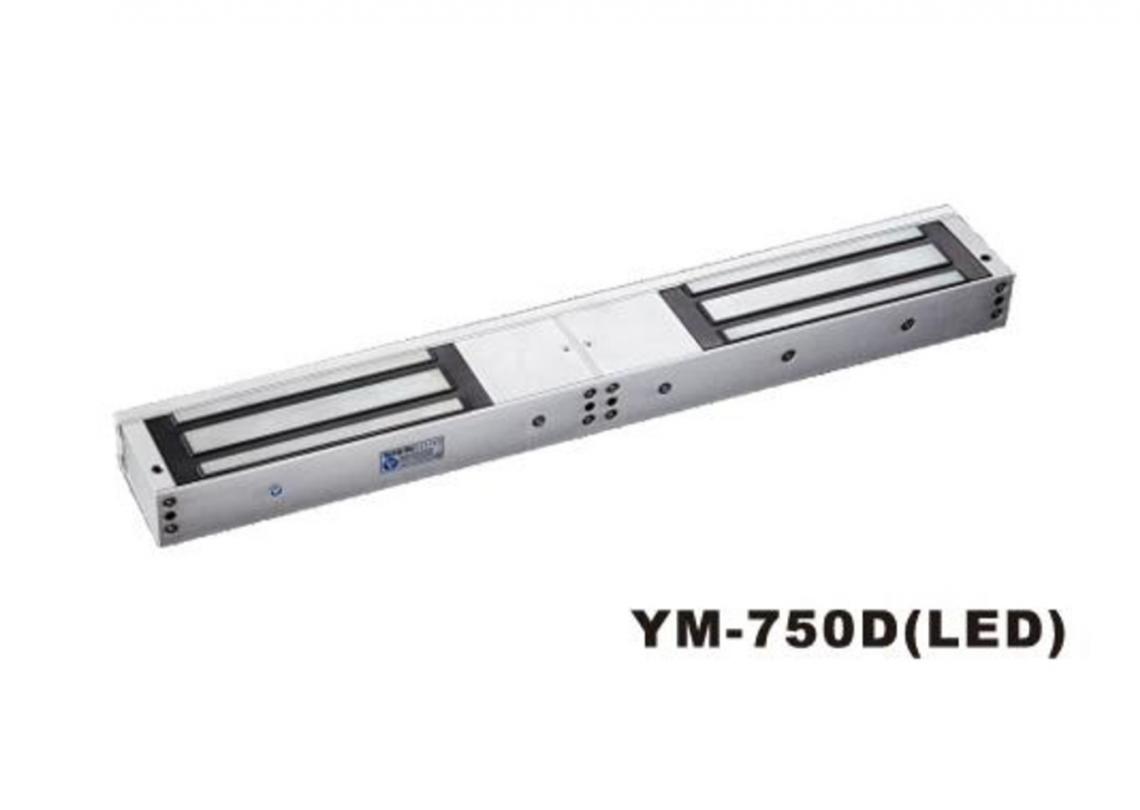

Amxon- Magnetic Lock Series
Key Specifications
- Size: 560L x 81.6W x 46H (mm)
- Holding Force: 750kg x2 (1500Lbs x2)
- Voltage: DC12V or DC24V
- Current Draw: 12V / 420mA x2 | 24V / 210mA x2
- LED Indicator: Red – Locked | Green – Unlocked
- Signal Output: Lock signal (NO/NC/COM)
- Time Delay: 0, 3, 6, 9 seconds (selectable)
- Operating Mode: Fail safe
- Weight: 11.8kg
Suitable For
- Wooden doors
- Metal doors
- Fireproof doors
- High-security double-door entry points
