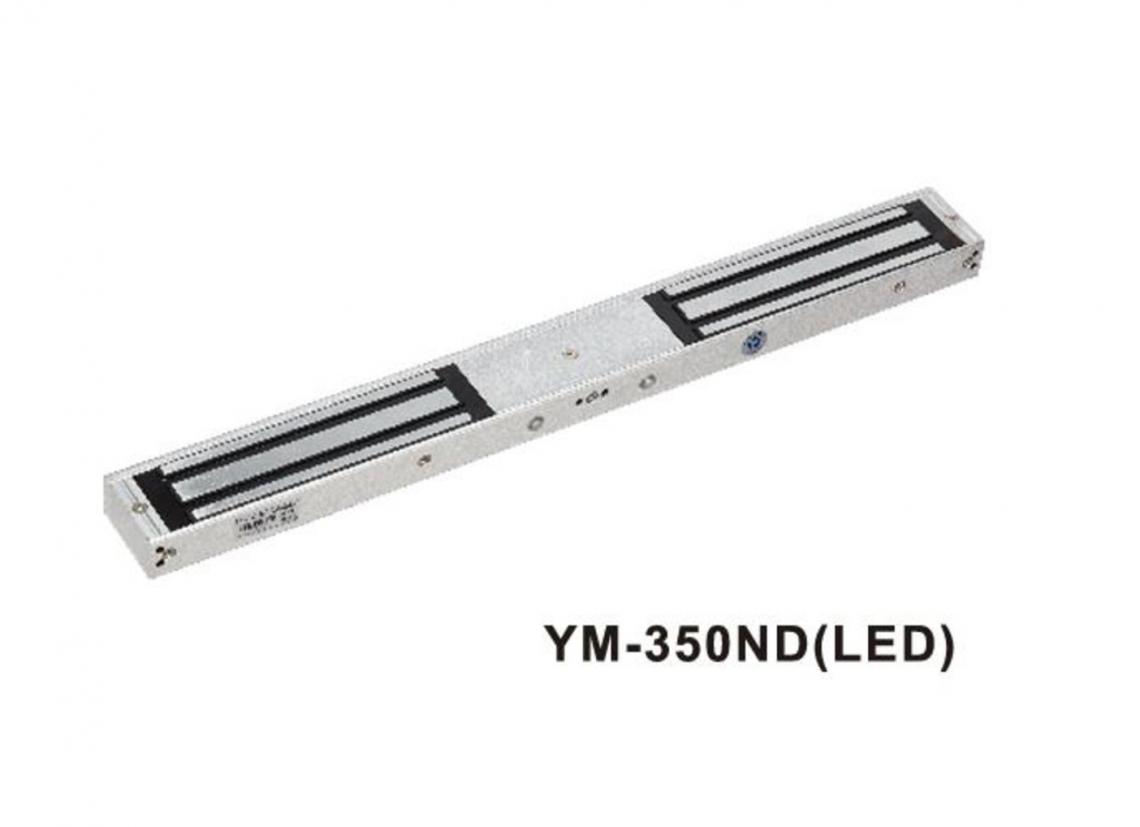

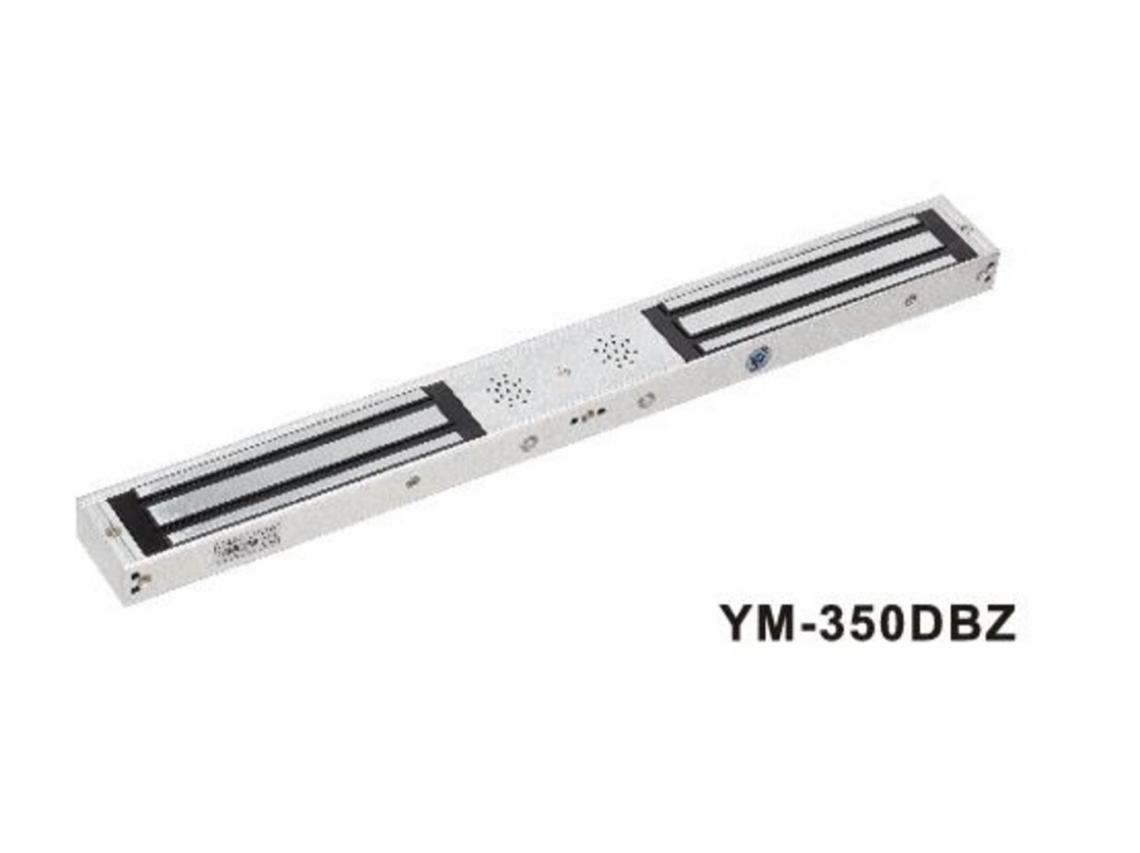

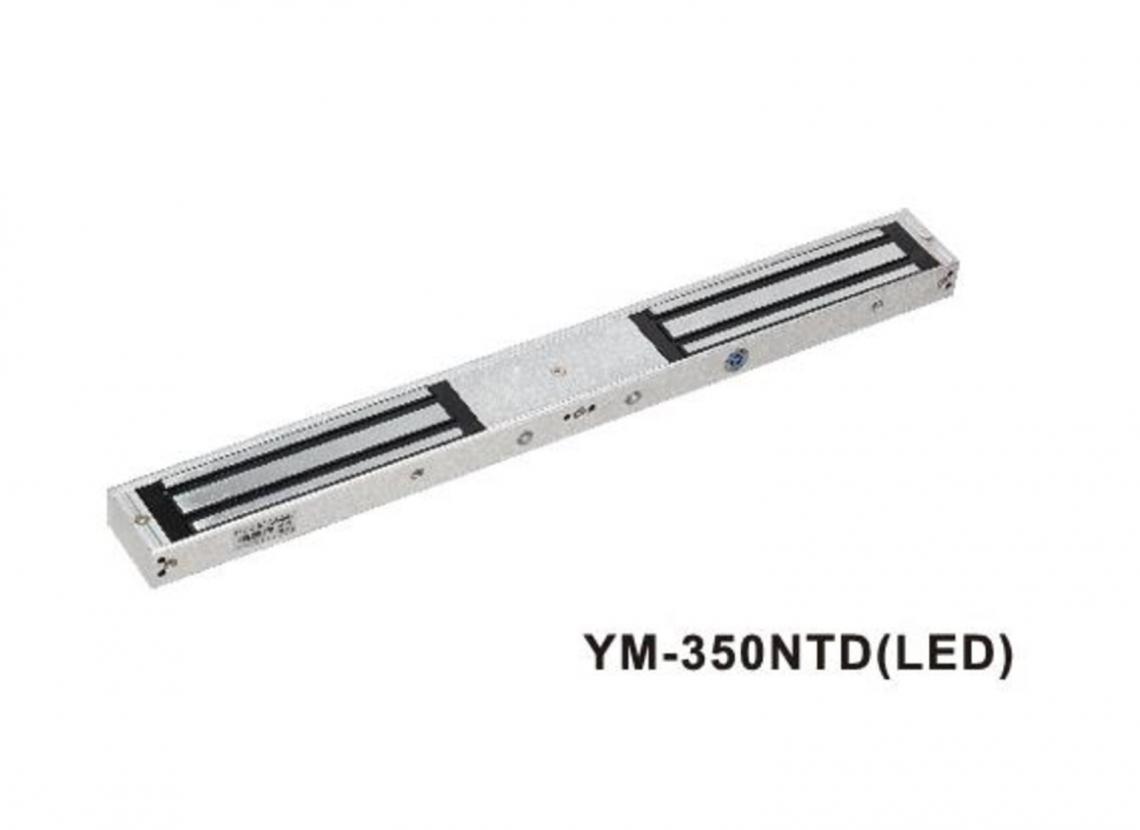

Amxon- Magnetic Lock Series
Key Specifications
- Size: 520L x 54.7W x 29.6H (mm)
- Holding Force: 350kg x2 (800Lbs x2)
- Voltage: DC12V or DC24V
- Current: 12V / 500mA ±10% x2 | 24V / 250mA ±10% x2
- Operating Mode: Fail safe
- Weight: 5.4kg
- LED & Signal Features
- LED Indicator: Red – Locked | Green – Unlocked
- Signal Output: Lock signal (NO/NC/COM) – customizable upon request
Suitable For
- Wooden doors
- Glass doors
- Metal doors
- Fireproof doors
The dedication to quality, achieve an unparalleled reputation for total customer satisfaction are the company mission.
