Door Hinges

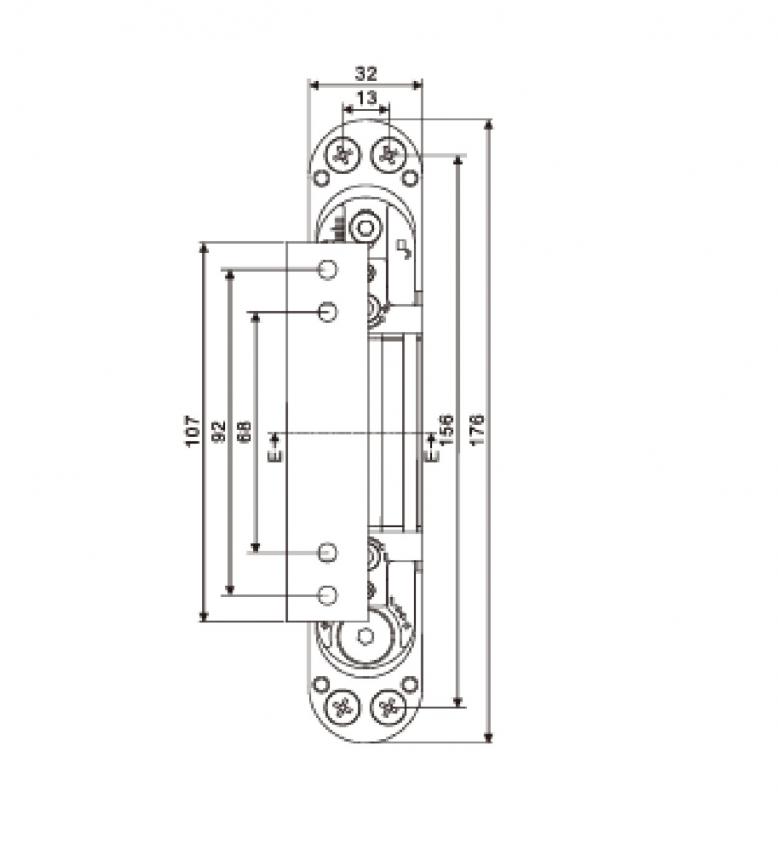

Amxon 3- Dimensional Concealed Hinge

ZCG80KG - C1

Key Features

• Adjustability: Vertical ±3mm | Depth ±1mm

• Capacity: Up to 80 kg (2 hinges)

• Opening: 120°

• Materials: Zinc Alloy Hinge Body | Aluminum Joiners | Stainless/Steel Spindles

• Finishes: Pearl Chrome, Nickel, Brass, Painting

• Min. Door Thickness: 40 mm

• Max. Door Width: 1000 mm

Additional Specifications

• 120° Opening Angle: Ideal for standard door application

• 2-Way Adjustable: Vertical and depth adjustment for easy alignment

• Safe & Sleek: Minimal gap with built-in finger protection

• Versatile Application: Suitable for fire doors, security doors, and soundproof doors with wood, steel, or aluminum frames
