Amxon- SINGLE ACCESS CONTROLLER
CNB-206E
Key Features
- Rated operating voltage: DC12V±3% (DC24V customizable)
- Standby current: 35mA (when supplied with DC12V)
- Operating current: 50mA (when supplied with DC12V)
- Card reading distance: 20mm~100mm
- Output time: 1~99 seconds adjustable
- Storage capacity: 1000 standard users (ID cards)
- Door opening password: 1 common password
- Time difference between unlocking and door opening: 400ms
- User card type: Em card or Em compatible card

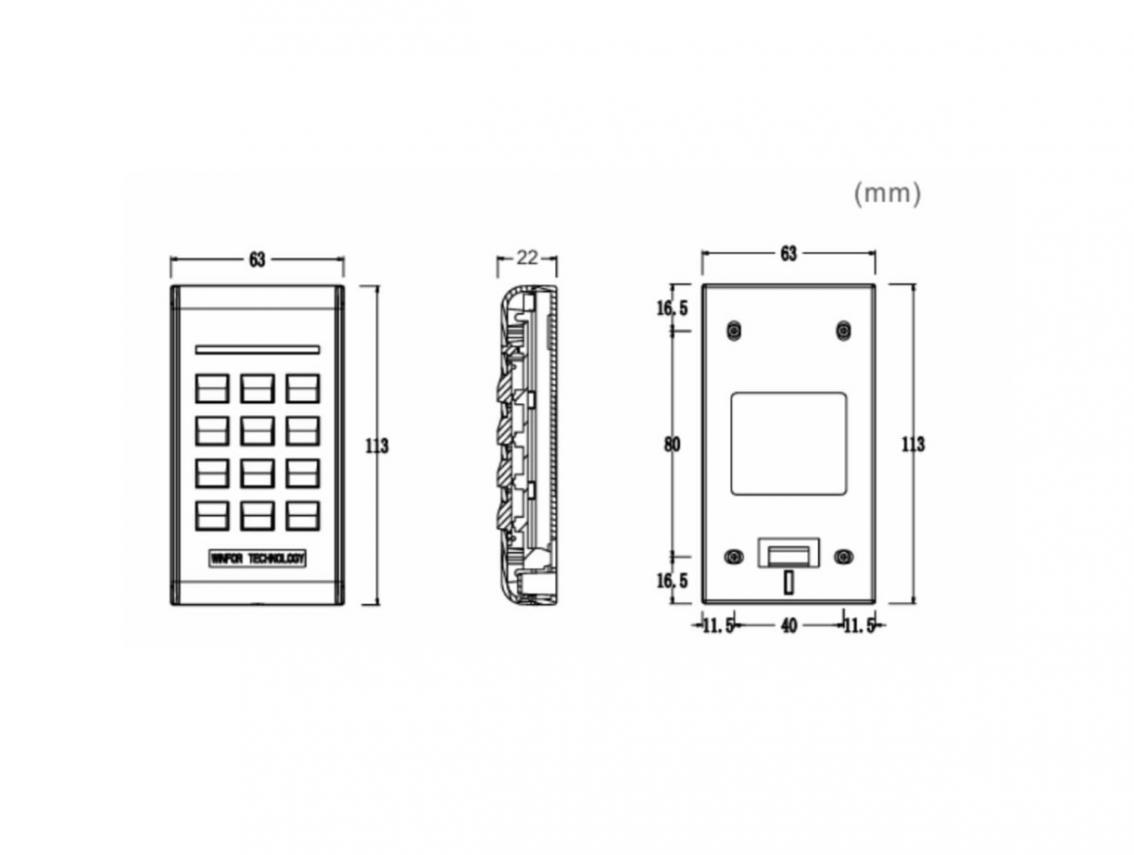

- Dimensions: 113(L)×63(W)×22(H)mm
