Amxon- ELECTRONIC RFID IDENTIFY RECOGNIZER TAG SET

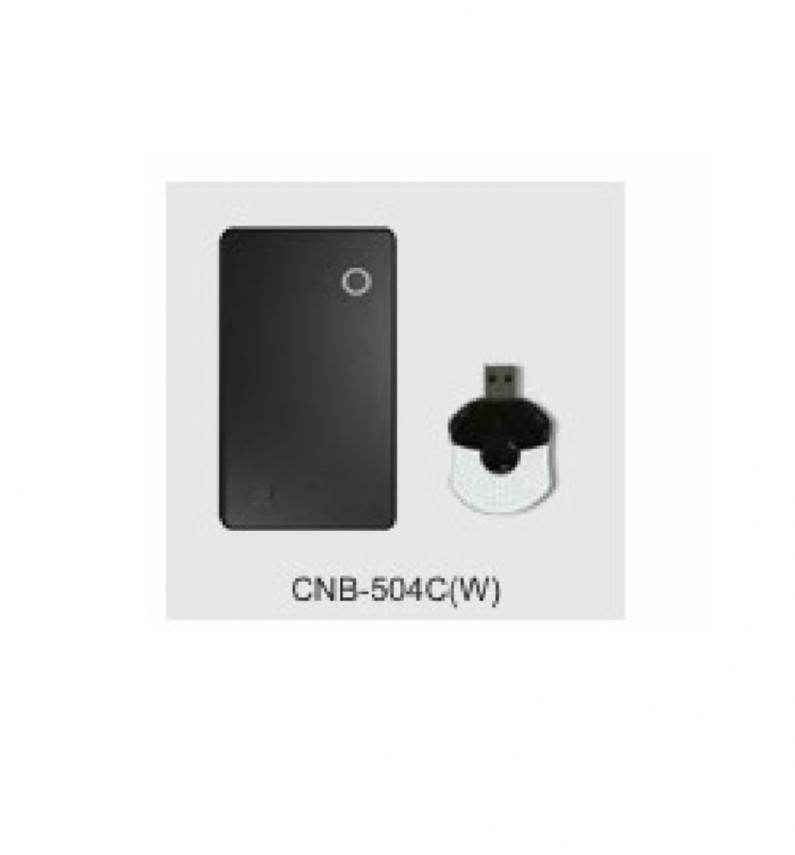

CNB-504/504W

Sensor

• Door access authorisation: Code matching learning
• Minimum distance between adjacent doors: 4m
• Maximum number of tag pairs: 300
• Output signal: COM, NO (dry contact)
• Output delay: 2.5 seconds
• Power supply: AC/DC12~30V
• Operating current: 90mA (701)/229mA (701W)
• Dimensions: 132(L)x48.7(W)x31(H)mm

Tag

• Power supply [701(0)]: 3V (CR2032 button battery)
• Power supply [701C(0)]: 5V
• Standby current: 10μA
• Transmitting current: 2mA
• Sensing range: Three adjustable levels (1m, 3m, 5m)

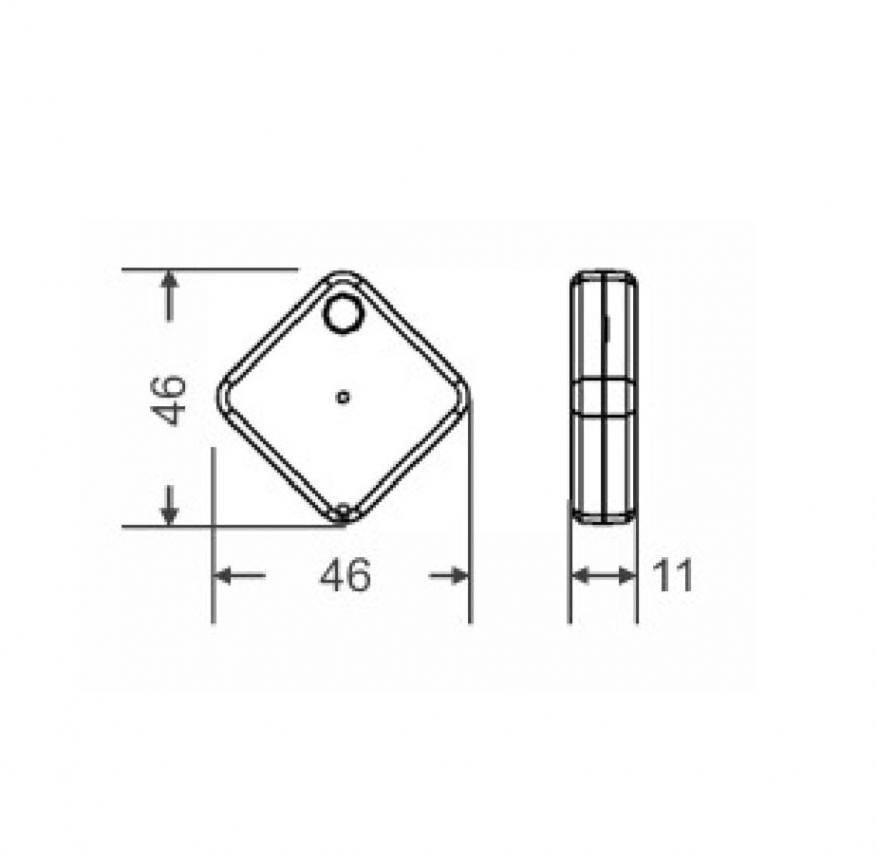

• Dimensions [701(0)]: 46(L)x46(W)x11(H)mm
• Dimensions [701C(0)]: 58(L)x38(W)x12(H)mm ...
