Amxon- ELECTRONIC RECOGNITION SENSOR

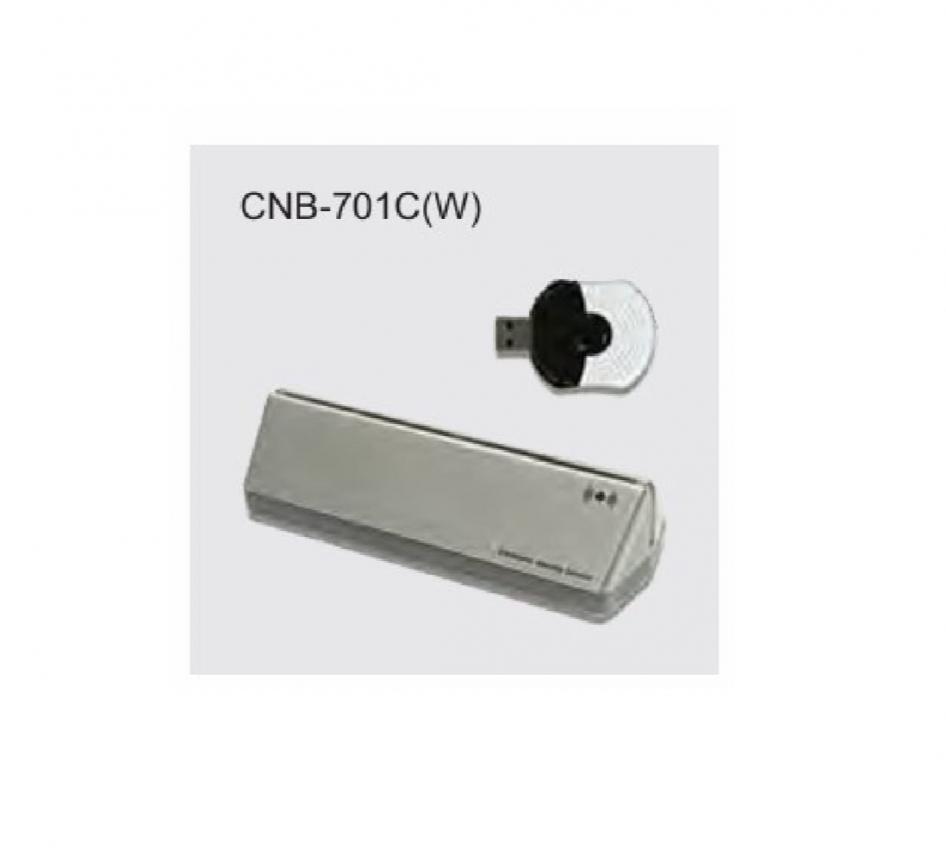

CNB-701/701W
Sensor
Door access authorisation: Code matching learning
Minimum distance between adjacent doors: 4m
Maximum number of tag pairs: 300
Output signal: COM, NO (dry contact)
Output delay: 2.5 seconds
Power supply: AC/DC12~30V
Operating current: 90mA (701)/229mA (701W)
Dimensions: 132(L)x48.7(W)x31(H)mm
Tag
Power supply [701(0)]: 3V (CR2032 button battery)
Power supply [701C(0)]: 5V
Standby current: 10μA
Transmitting current: 2mA
Sensing range: Three adjustable levels (1m, 3m, 5m)
Dimensions [701(0)]: 46(L)x46(W)x11(H)mm
Dimensions [701C(0)]: 58(L)x38(W)x12(H)mm
