Amxon- PASSIVE INFRARED SENSOR
CNB-204F
Key Features
- Maximum installation height: 3500mm
- Tilt adjustment angle: 0°~6°
- Maximum detection area: 3m×1.5m
- Installation tilt: 0°~90° (longitudinal)
- Power supply voltage: AC/DC 12V~30V (-0%~+15%)

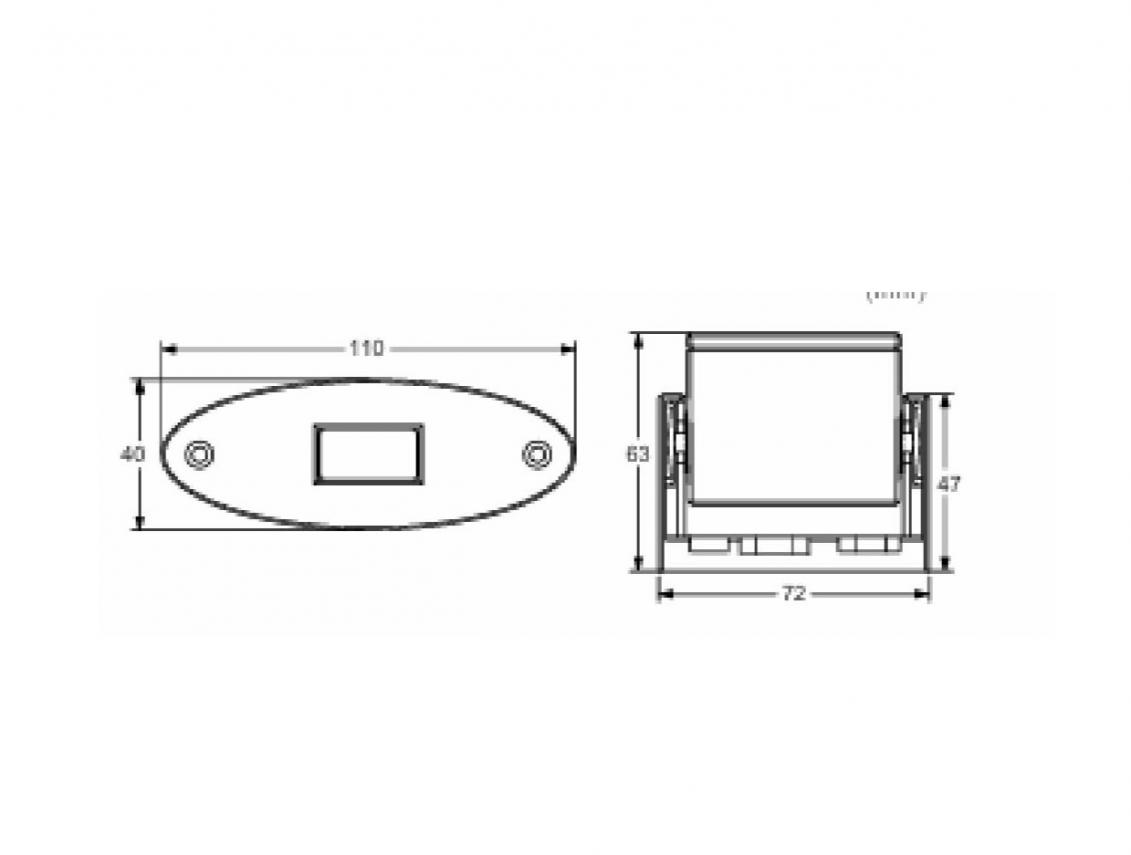

- Appearance dimensions (recessed): 110(L)x40(W)x49(H)mm
- Appearance dimensions (surface-mounted): 72(L)x25(W)x63(H)mm
- Output hold time: 0.5s
- Dynamic current: 18mA (when powered by DC12V)
- Static current: 6mA (when powered by DC12V)
