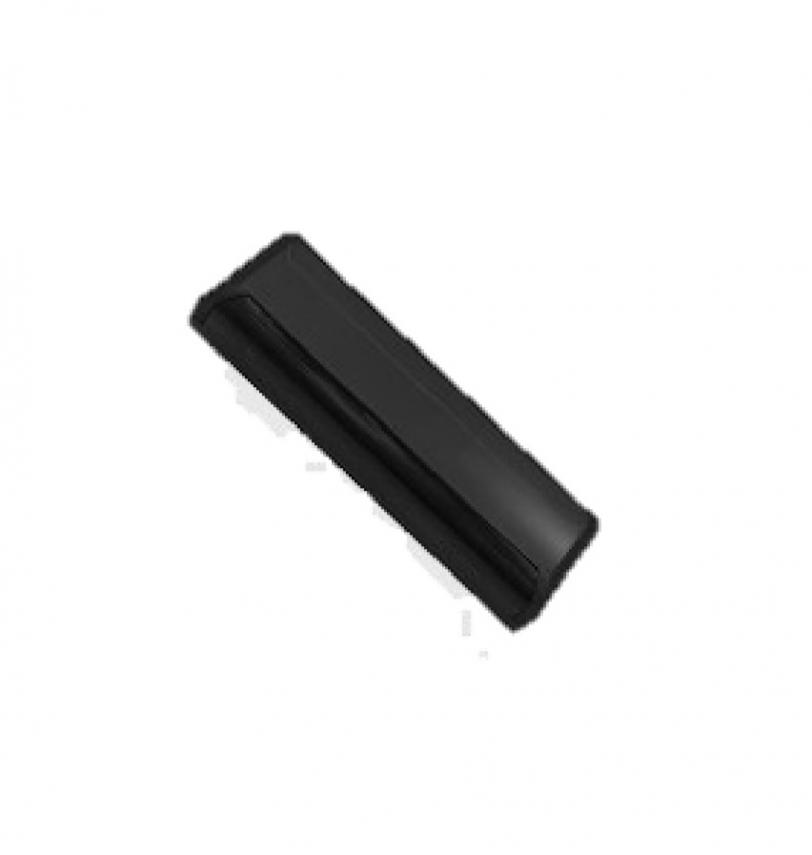

Amxon- MOTION&PRESENCE INFRARED SENSOR
CNB-254
Key Features
- Input power: AC/DC12~24V(±10%)
- Cable length: 2.5m
- Signal output: Relay, 1 anti-pinch, 1 start (normally open/closed selectable)
- Maximum installation height: 3000mm
- Standby current: 30mA (when powered by DC12V)
- Operating current: 110mA (when powered by DC12V)

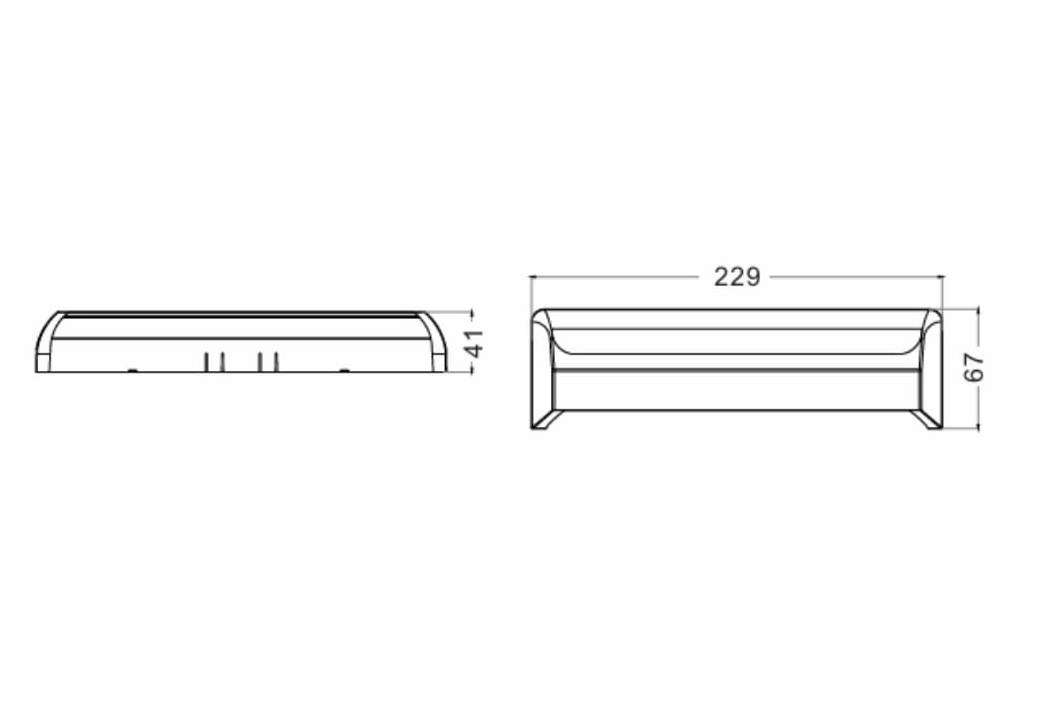

- Dimensions: 229(L)x67(W)x41(H)mm
- Housing: ABS
- Light type: Infrared modulated light
- Light source: Infrared 940nm
- Beam: 1 anti-pinch, 4 emitters, 16 light points, 3 start, 12 emitters, 48 light points
- Self-learning time: 10s
- Operation indicator light display: Standby green on, start signal yellow, anti-pinch signal red
- Temperature range: -40°C to 60°C
- Detection width: 800~1600mm adjustable
- Detection thickness: 800~1500mm adjustable
- Output hold time: Anti-pinch 500ms, start 2s
- Response time: ≤100ms
