Amxon-CEILING UNIDIRECTIONAL MICROWAVE SENSOR
CNB-204X
Key Specifications
- Implementation Technology: Microwave and Microwave Processor
- Emission Frequency: 24.125GHz
- Emission Power: <20dbmE1RP
- Maximum Installation Height: 4500mm
- Detection Mode: Unidirectional Motion
- Installation Tilt: 0°~90° (longitudinal) -30°~+30° (lateral)
- Power Supply Voltage: AC/DC12V~30V(±10%)(50~60Hz)

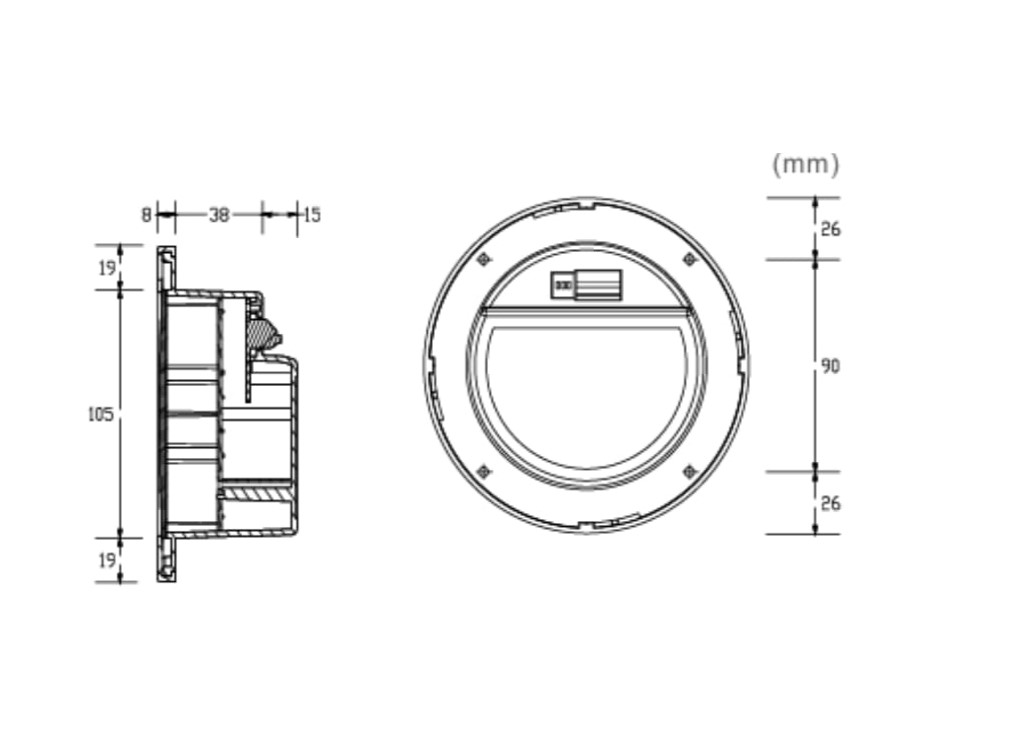

- Dimensions: 142(Φ)x61(H)mm Mounting
- Hole Dimensions: 105(Φ)x53(H)mm
- Dynamic Current: 80mA
- Static Current: 40mA
