Amxon- (UNIDIRECTIONAL)MICROWAVE SENSOR
CNB-204M
Implementation Technology: Microwave and Microwave Processor
Transmit Frequency: 24.125GHz
Transmit Power: <20dbmE1RP
Transmit Power Density: 5mW/cm2
Maximum Installation Height: 4000mm (5000mm customizable)
Detection Mode (204HD): Unidirectional Motion
Installation Tilt: 0°~90° (Vertical)
Power Supply Voltage: AC/DC12V~24V (±10%) (50~60Hz)

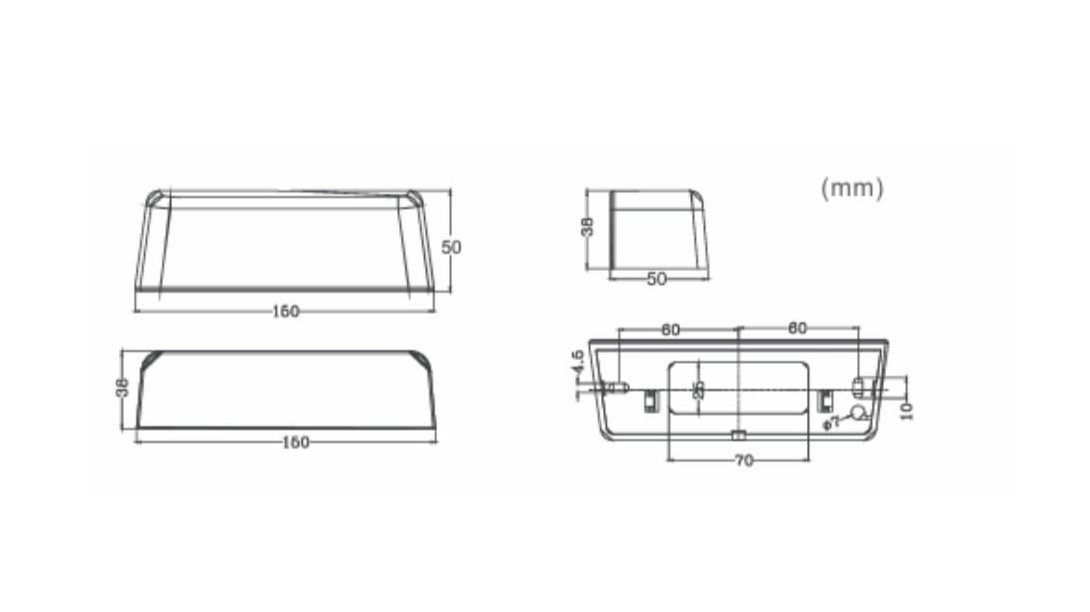

Dimensions: 150(L)x50(W)x38(H)mm
Dynamic Current (204H/204HD): 78mA/85mA
Static Current: 43mA
Hold Time (204H/204HD): 2s/1s
