Amxon- (UNIDIRECTIONAL) MICROWAVE SENSOR
CNB-204G/204GD
Implementation technology: Microwave and microwave processor
Transmitting frequency: 24.125GHz
Transmitting power: <20dBmEIRP
Transmitting power density: <5mW/cm2
Maximum installation height: 4000mm (5000mm customizable)
Detection mode (204GD):
Unidirectional motion Installation tilt: 0°~90° (vertical) -30°~+30° (horizontal)
Power supply voltage: AC/DC 12V~24V ±10% (50~60Hz)

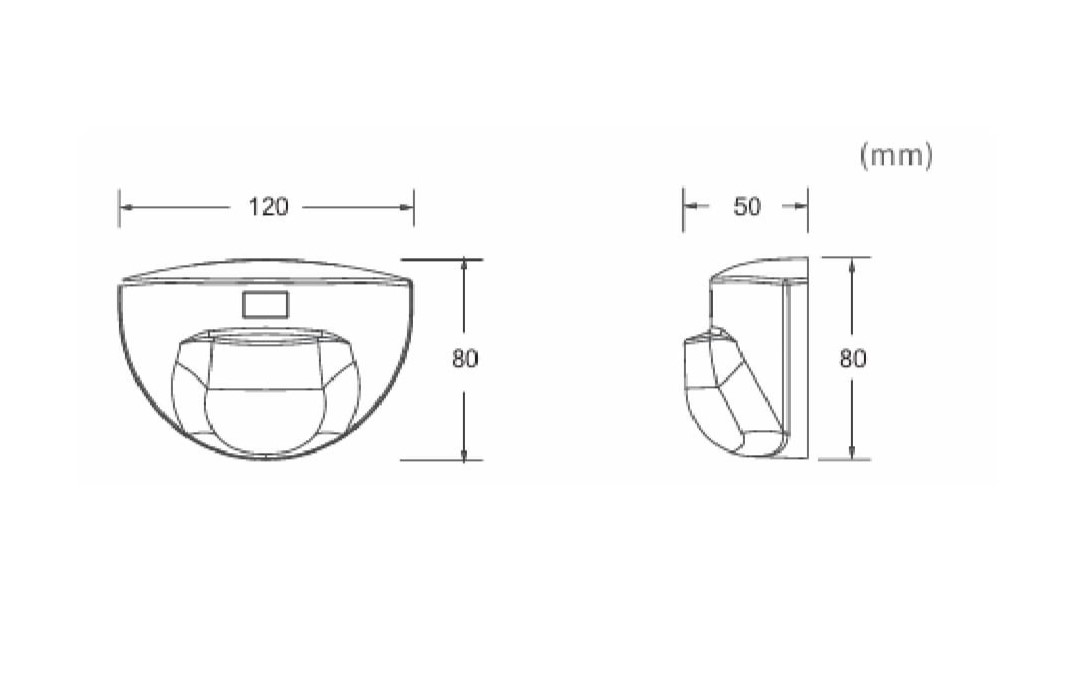

Dimensions: 120(L)x50(W)x80(H)mm
Dynamic current: 86mA (when powered by 24V)
Static current: 45mA (when powered by 24V)
Operating environment: -20℃~+55℃
Hold time (204G/204GD): 2s/1s
