Automatic Door Operator System

Amxon-INFRARED SENSOR

CNB-204E



Number of beams: Six transmission, six reception

Function category: Detect moving objects, sensor activation

Maximum installation height: 3000mm

Sensitivity adjustment function: Yes (knob adjustment)

Power supply: AC/DC12~36V±5%

Dynamic current: 100mA (when powered by DC12V)

Static current: 70mA (when powered by DC12V)

Maximum sensing area: 1500(D)x1500(W)mm

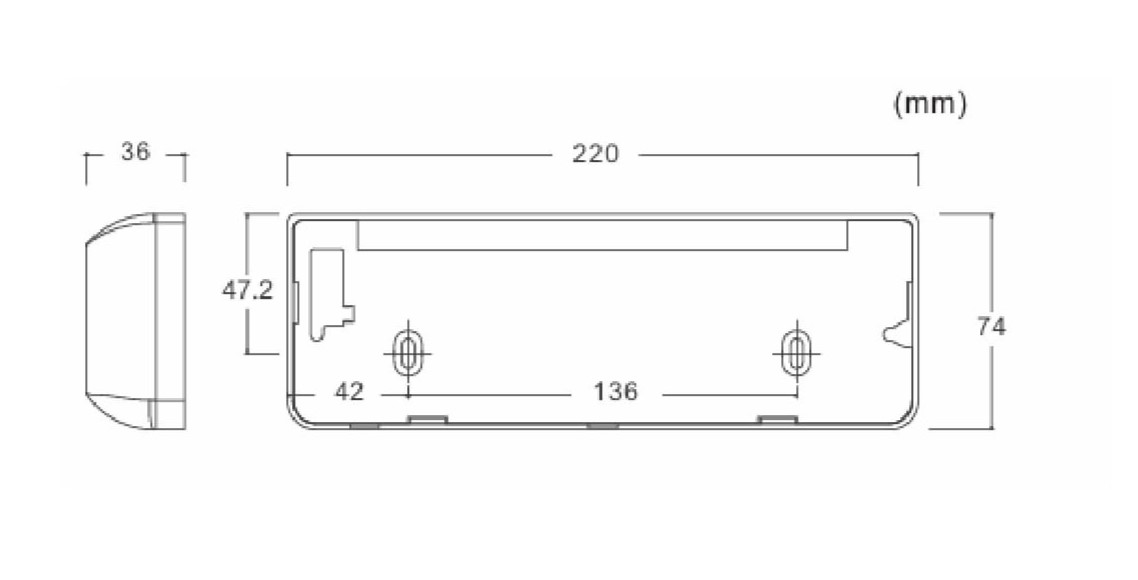

Dimensions: 220(L)x74(W)x36(H)mm
