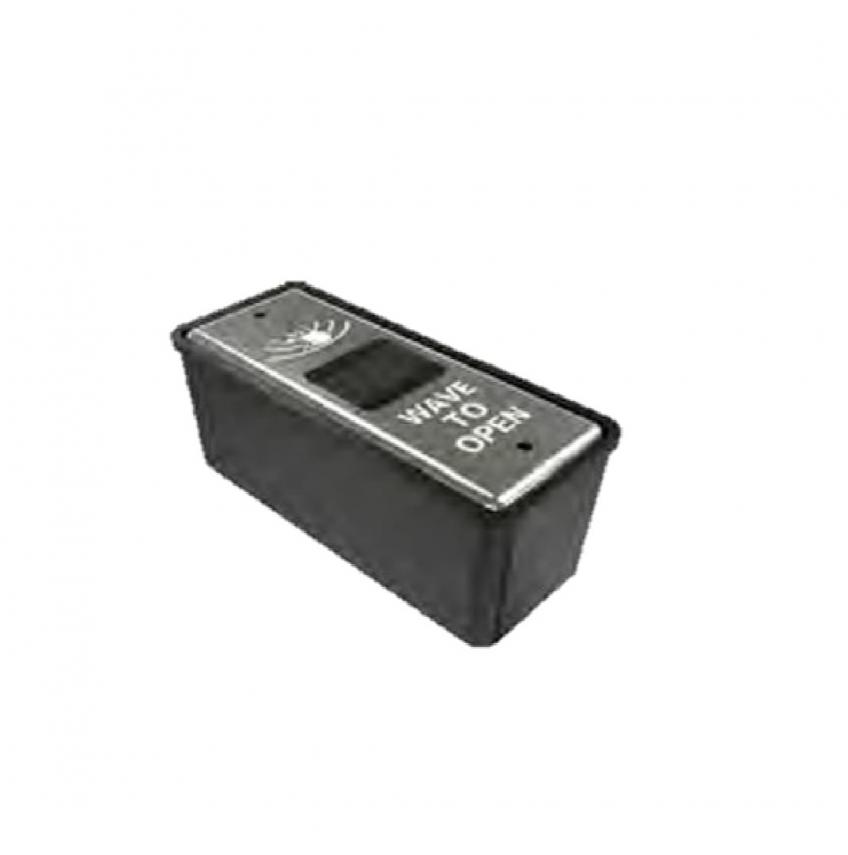

Amxon- WORED/WIRELESS NARROW CAPACITIVE SENSING SWITCH
CNB-514S/508S
Receiver
Power Supply: DC12~30V
Static Current: 34mA
Operating Current: 62mA (DC12V power supply)
Main Contact Capacity: 1A 24VDC
Dimensions: 110(L)×30(W)×15(H)mm
Transmitter
Power Supply (514S/508S): AC/DC12~30V / 3V (two 1.5V AA batteries)
Static Current (514S/508S): 10.5mA / ≤42μA
Operating Current (514S): 31mA (DC12V power supply)
Main Contact Capacity (514S): 3A 30VDC
Battery Life: Can operate for 260 days with an average of 500 activations per day
Transmission Current (508S): 12mA
Transmission Distance: >30m
Operating Temperature: -42℃~45℃
Operating Humidity: 10~90% RH

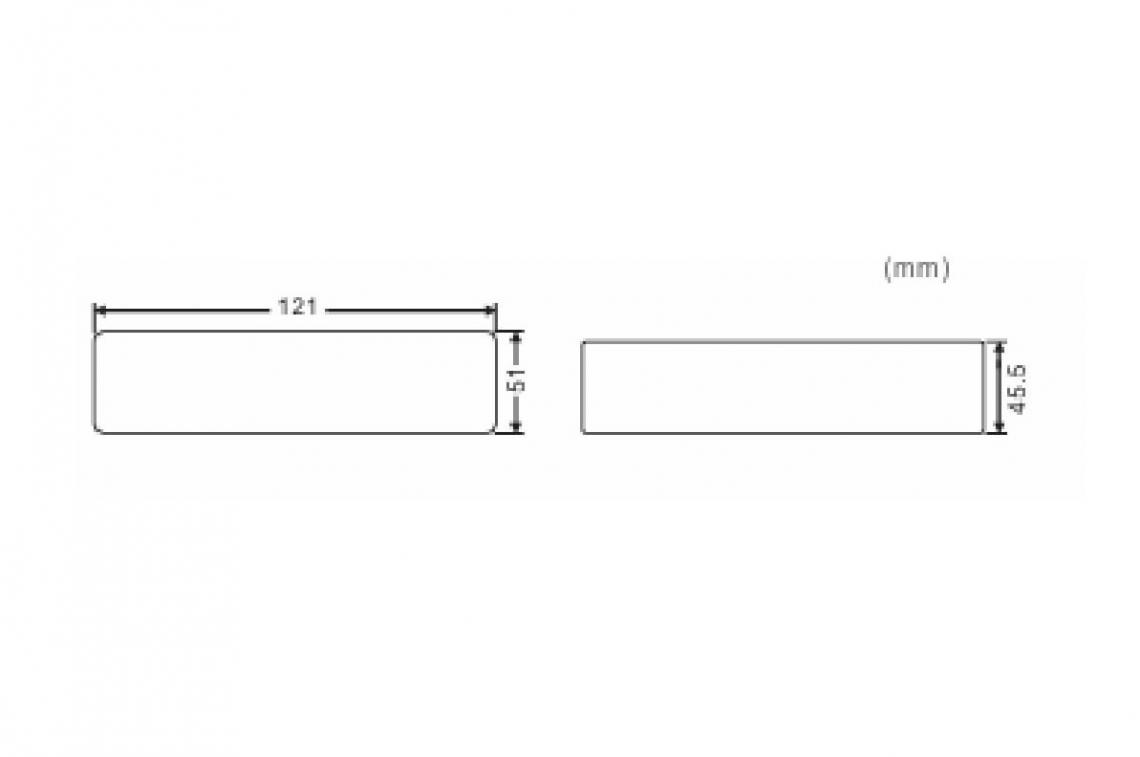

Dimensions: 121(L)×51(W)×45.5(H)mm
