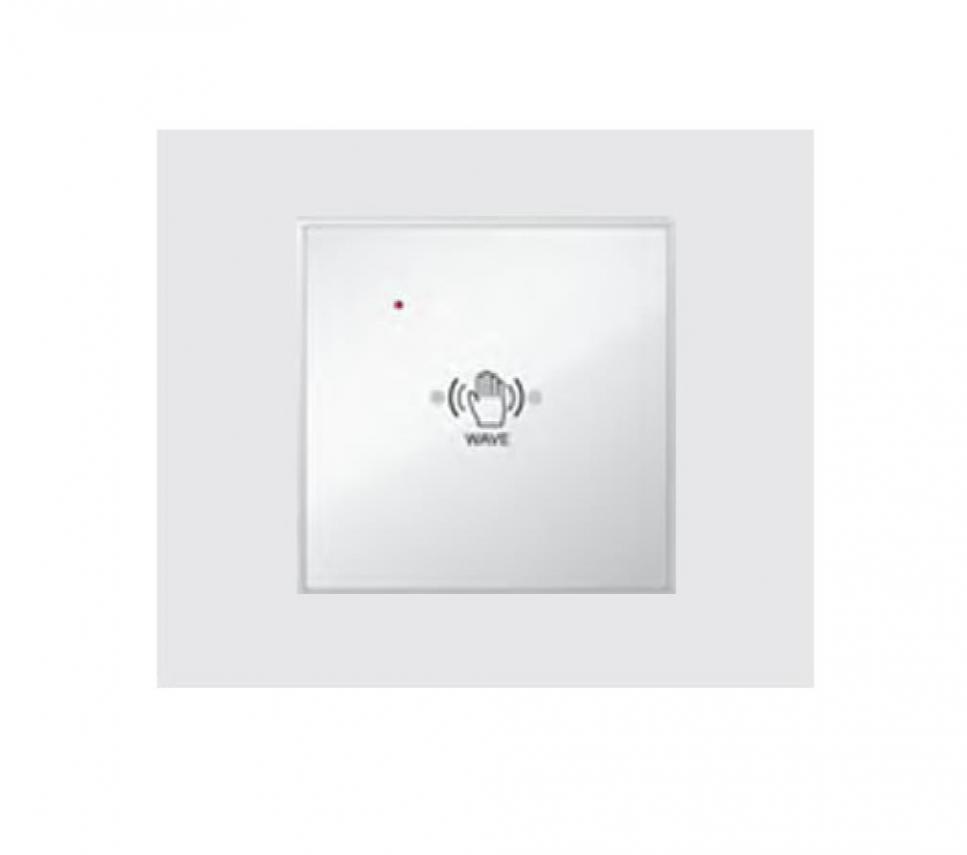

Amxon- WIRELESS/WIRED NON-TOUCH SWITCH
CNB-505MH/505MHW
Power Supply (505MH/505MHW): AC/DC 12-24V/3V (2 x 1.5V batteries)
Static Current (505MH/505MHW): 6mA/80μA (when powered by DC12V)
Operating Current (505MH/505MHW): 6mA/10mA (when powered by DC12V)
Infrared Modulation Frequency: 38KHz Relay Output (505MH):
Normally Open/Normally Closed Relay Contact Capacity (505MH): 1A 24VDC
Response Time: 30ms 100ms
Output Hold Time: 100ms
Operating Temperature: 42C~45C
Operating Humidity: 10~90%RH
Dimensions: 86mm x 86mm x 15mm
Receiver Power Supply: DC12~30V
Standby Current: 34mA (when powered by DC12V)
Operating Current: 62mA (when powered by DC12V)
Relay Contact: 1A 24VDC
Contact Engagement Hold Time: 1.5s (Momentary)
Signal Output: Momentary/Hold/Selectable
Product Dimensions: 110(L) × 30(W) × 15(H)mm
