Automatic Door Operator System

Amxon- DIMMING GLASS CONTROL SWITCH

CNB-602G



Power supply: AC220V 50HZ

Main contact capacity: 1A 24VDC

Contact holding time: 1.5s

Receiver sensitivity: -95dbm

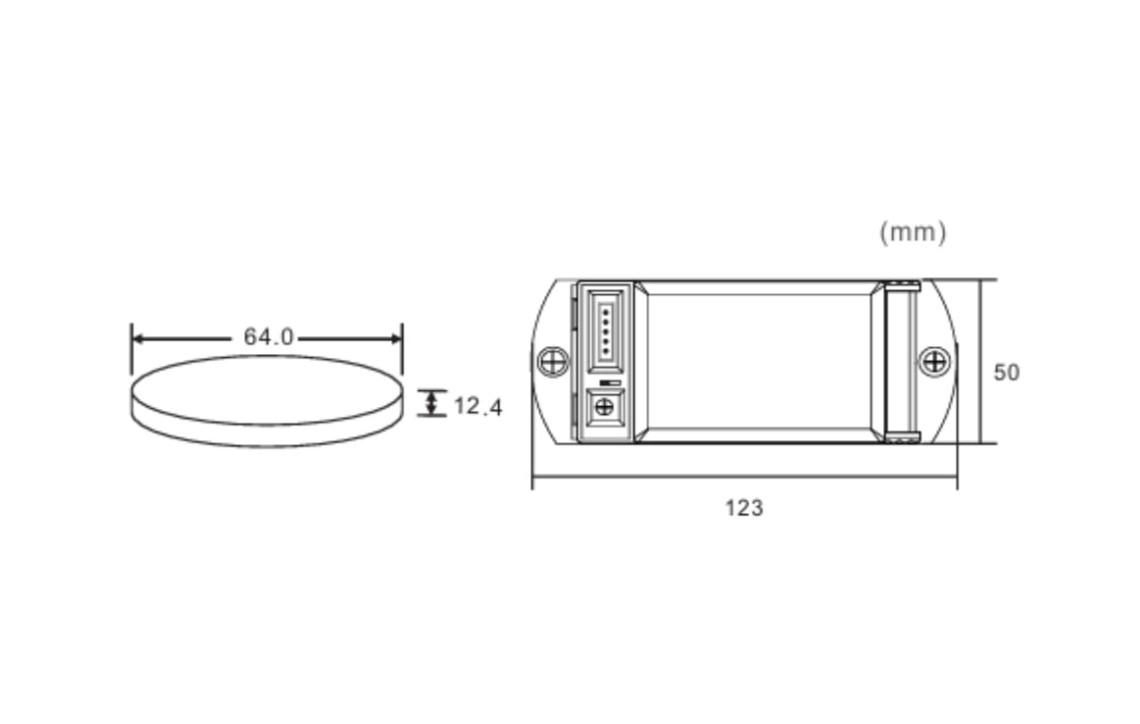

Appearance dimensions: 123(L)×50(W)×32(H)mm

Transmitter Power supply: 3V (2 3V button batteries, connected in parallel)

Standby current: ≤10μA

Transmission current: 7.5mA

Battery life: With an average of 200 presses per day, it can last 300 days

Transmission distance: 30m in open space, over 30m

Appearance dimensions: 64(Φ)×12.4(W)mm
