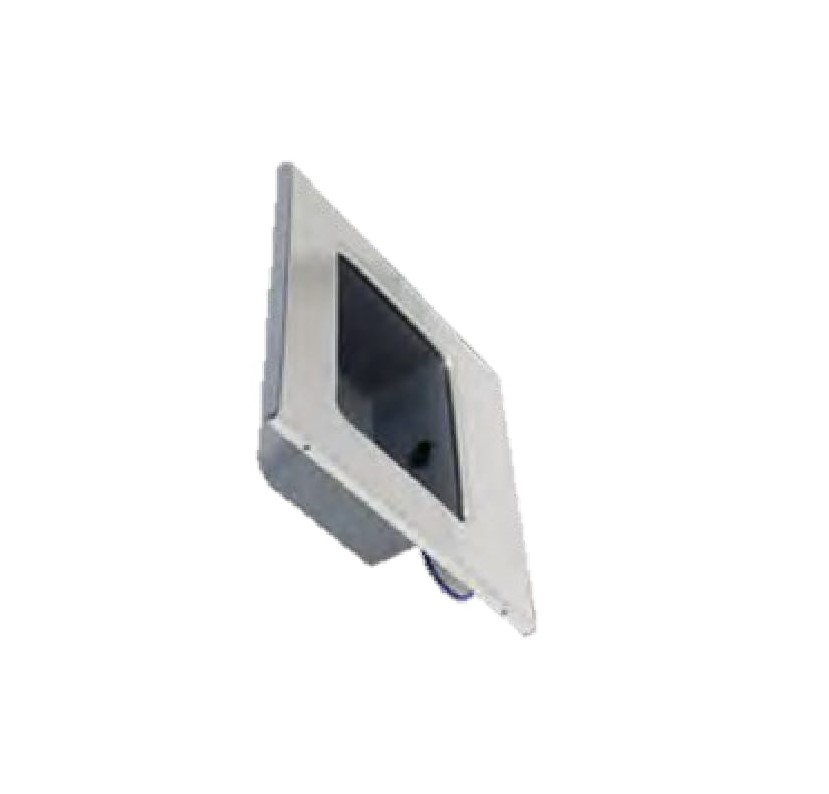

Amxon- INTEGRATED FOOD PEDAL SWITCH
CNB-219T
- Technical measures: Microprocessor modulated active infrared
- Detector mode: footstep appears, beam is interrupted, triggering an open door signal
- Power input: AC/DC12~30V
- Signal indication: When the through-beam control is effective, the red light is on, the green light flashes when the beam is interrupted
- Anti-interference: Sunlight 81000LUX
- Signal output: Relay normally open or normally closed optional
- Recommended installation height: centre 0.3m from the ground
- Response time: Relay output ≤45ms
- Ambient temperature: -20℃~+55℃
- White light lamp: 36000LUX

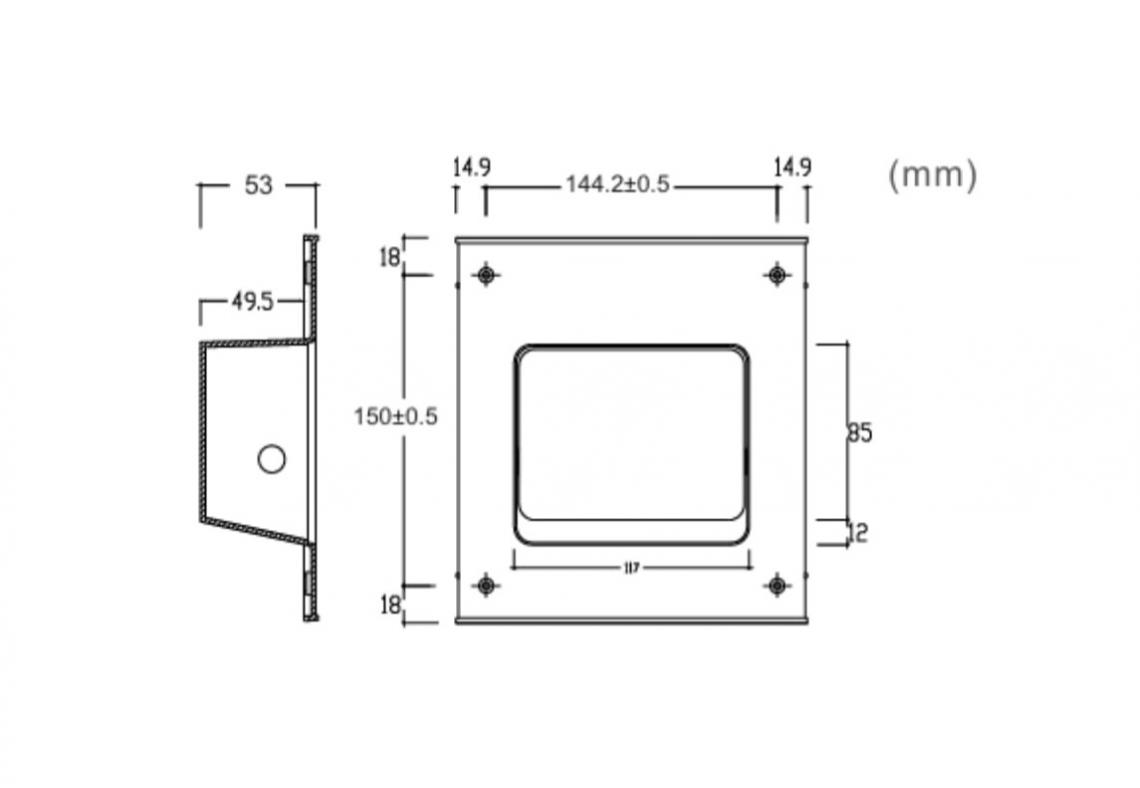

- Dimensions: 186mm×175mm×53mm
- Standby current: 8.2mA (when powered by DC12V)
- Operating current: 47mA (when powered by DC12V)
