Amxon- 4 Beam Sensor
CNB-218A
• Input Voltage: AC/DC 12–30 V
• Maximum Transmit / Receive Distance: 8 m
• Active Current: 21 mA (at 12 V supply)
• Standby Current: 28 mA (at 12 V supply)
• External Wiring: Black wire and blue wire, each 5.5 m

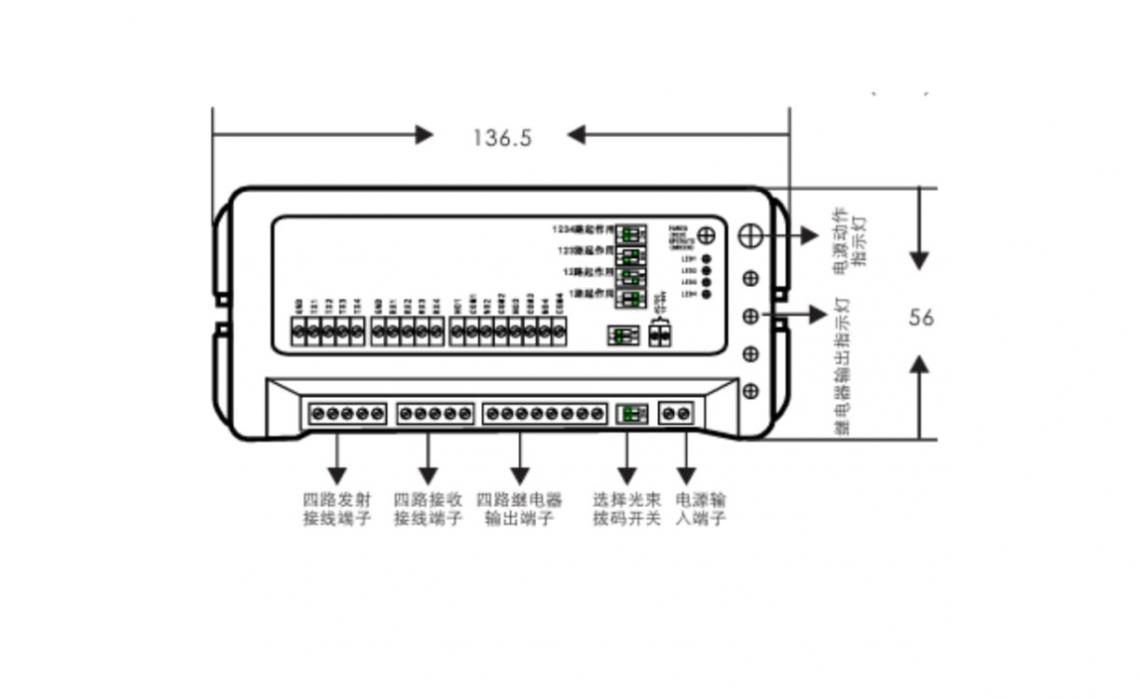

• Main Controller Dimensions: 136.5 (L) × 56 (W) × 29.5 (H) mm
• Photo Eye Head Dimensions: 18 (H) × 15.5 (Ø) mm
• Photo Eye Head Cut-out Size: 19 (D) × 13 (Ø) mm
