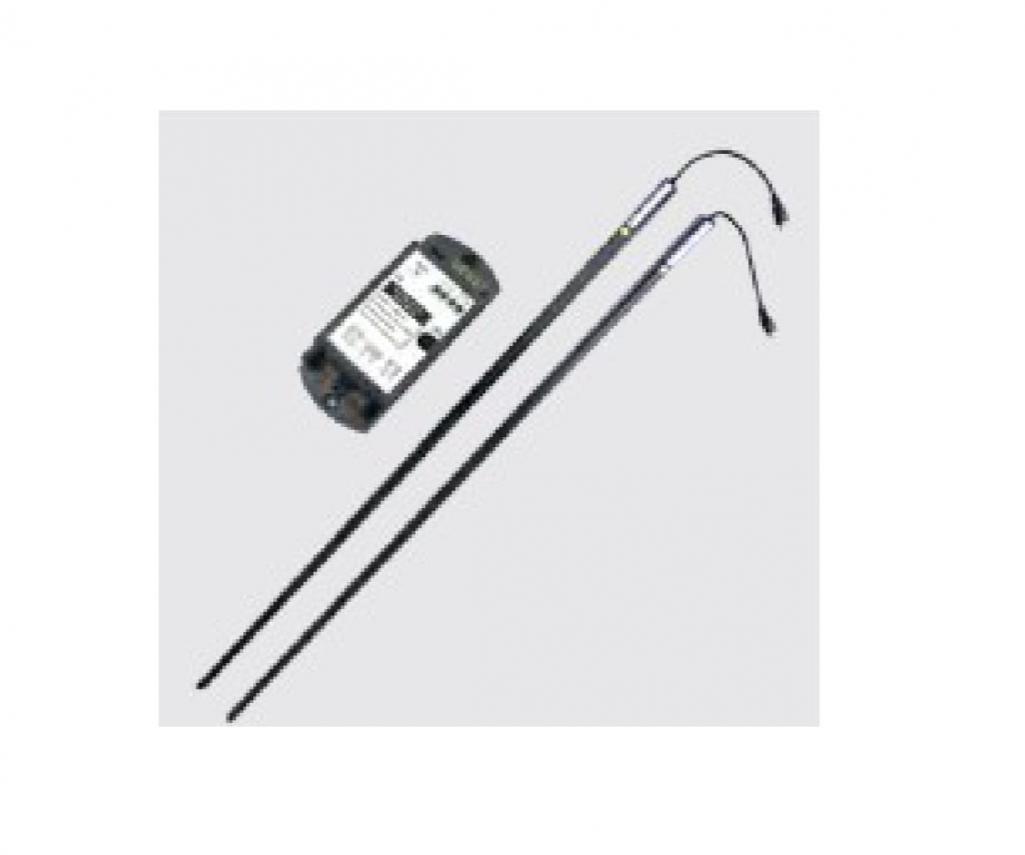

Amxon- Safety Curtain
CNB-261
Item: 1 m Model 0.5 m Model 2m Model 1.5m Model
Response Time: 52 ms 26 ms 104 ms 78 ms
Scanning Beams: 16 beams 8 beams 32 beams 24 beams
Dimensions (mm): 1000 × 23 × 11 500 × 23 × 1 2000x23x11 1500x23x11
• Operating Distance: 10 cm – 550 cm
• Cable Length: 4 m (single cable)
• Ambient Light Immunity: 100,000 lux
• Infrared Emitter Spacing: 60 mm
• Operating Temperature Range: -20°C to +65°C
• Standby Current: 195 mA (at 12 V supply)
• Active Current: 165 mA (at 12 V supply)
