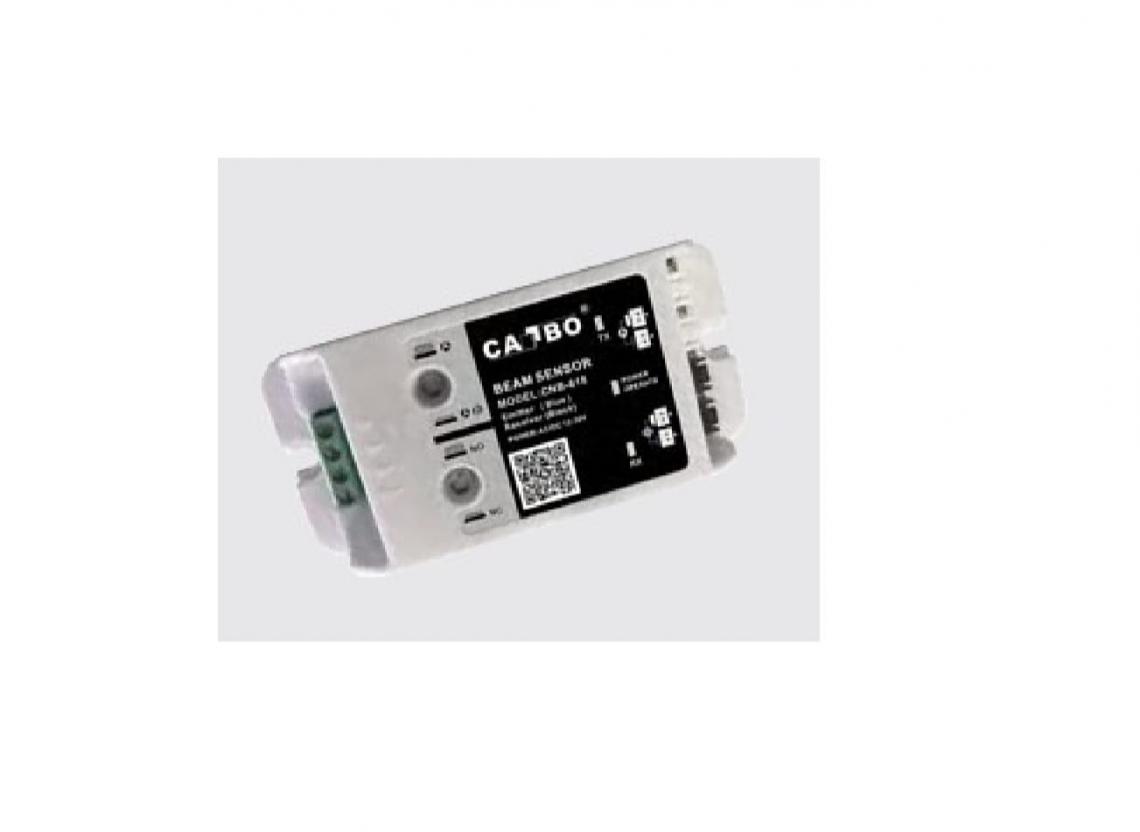

Amxon- Beam Sensor
CNB-618
• Input Voltage: AC/DC 12–30 V (±10%)
• Contact Output Status: Normally Open (NO) / Normally Closed (NC) selectable
• Output Rating: 1 A @ 24 VDC (contact)
• Maximum Transmit / Receive Distance: 10 m
• Blue/Black Cable Length: 5.5 m
• Number of Beams: Single-beam or dual-beam selectable
• Photo Eye Dimensions: 18.24 (L) × 15 (Ø) mm
• Active Current: 58 mA (at DC 12 V supply)
• Standby Current: 23 mA (at DC 12 V supply)

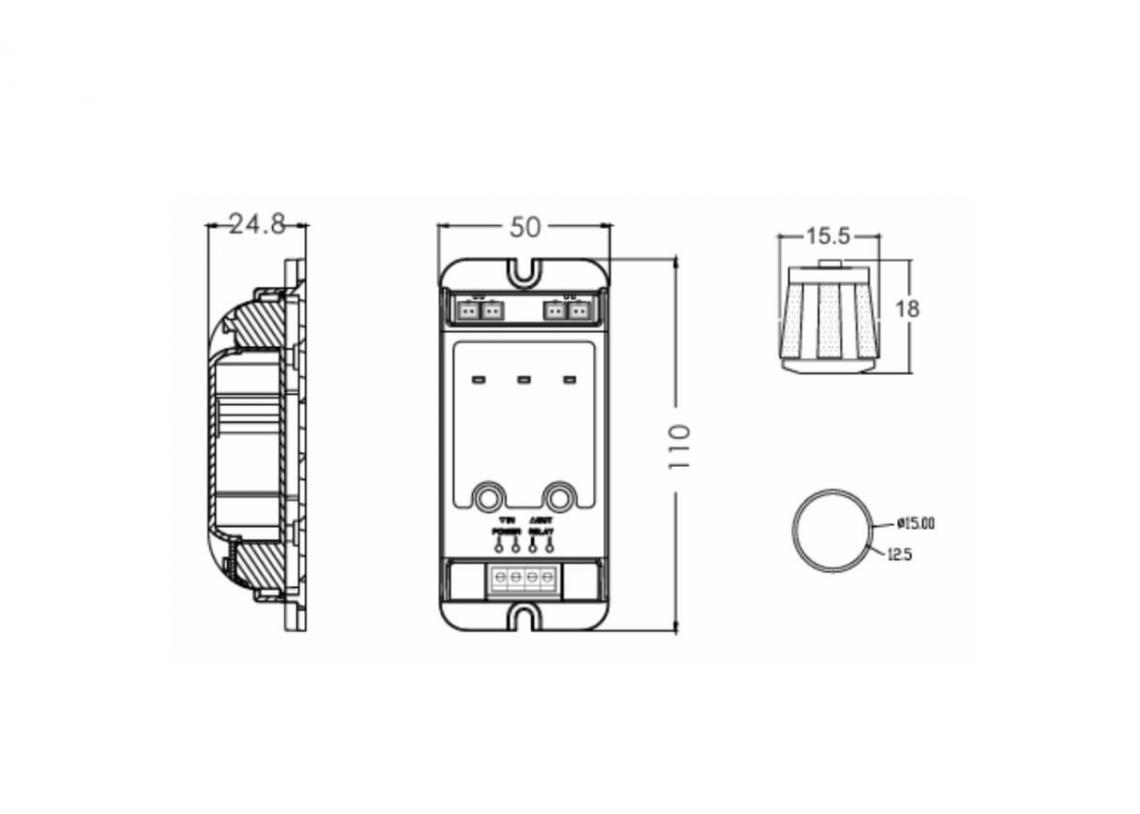

• Controller Dimensions: 110 (L) × 50 (W) × 24.8 (H) mm

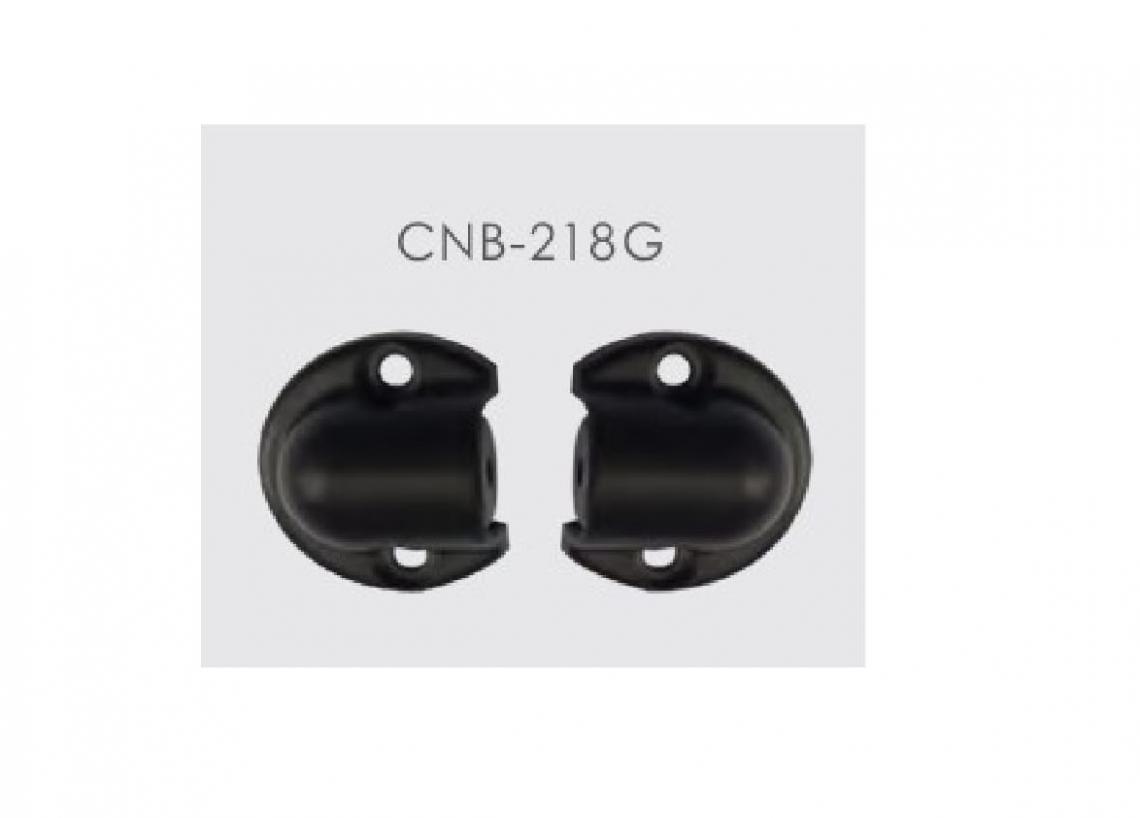

• Safety Photo Eye Surface-Mount Bracket: 33 (L) × 28 (W) × 18 (H) mm (CNB-218G)
• Photo Eye Head Dimensions: 18 (H) × 15.5 (Ø) mm
• Photo Eye Head Cut-out Size: 19 (D) × 13 (Ø) mm
