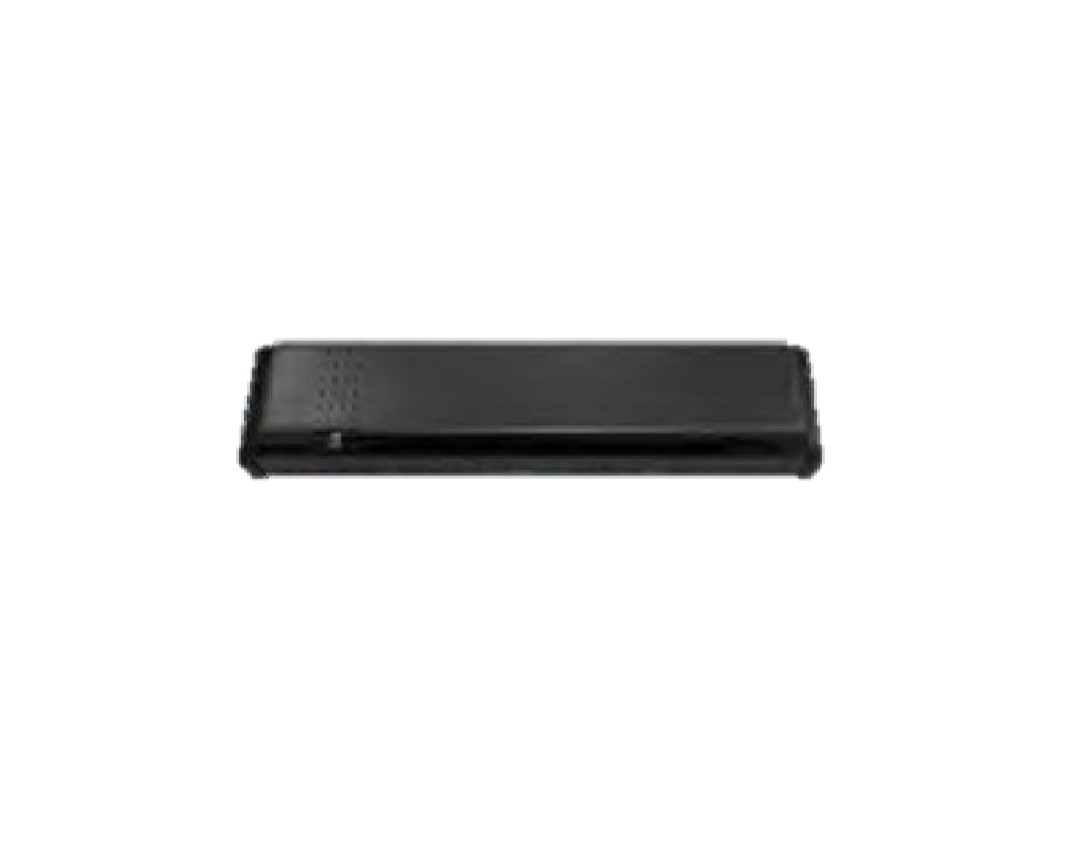

Amxon-MOTION & SAFETY INFRARED COMBINED SENSOR (3-IN-1 TYPE)
CNB-507X
• Input Power Supply: AC/DC 12–30 V (±10%)
• Maximum Width: 2500 mm
• Cable Length: 2.5 m
• Signal Output: Relay output
• One channel for activation
• One channel for anti-pinch protection
• Normally Open (NO) / Normally Closed (NC) selectable
• Maximum Installation Height: 3000 mm
• Standby Current: 39 mA (DC 12 V supply)
• Active Current: 105 mA (DC 12 V supply)
• Materials: Optical surface: PMMA, Housing: ABS
• Light Type: Modulated infrared light
• Light Source: 940 nm infrared
• Beam Configuration:
• Standard Mode:
• 2 anti-pinch channels, 6 transmitters, 24 light points
• 1 activation channel with anti-pinch function
• Street-Facing Mode:
• 3 transmitters, 12 light points
• 2 activation channels, 6 transmitters, 24 light points
• 2 anti-pinch channels, 6 transmitters, 24 light points
• 1 pre-activation channel, 3 transmitters, 12 light points
• Power-on Self-Learning Time: Dynamic learning, stabilizes within 8 seconds
• Operating Temperature Range: -25°C to +55°C
• Sensing Range: Hand-sensing door opening distance: 80–170 mm (at 2.5 m installation height)
• Output Hold Time: Anti-pinch: 1.2 s, Activation: 2 s
• Response Time: ≤ 150 ms
• Background Update Time: Selectable (15 s / 1 min / 30 min / no update)
• Product Dimensions: 268 (L) × 61 (W) × 38 (H) mm (base not included
