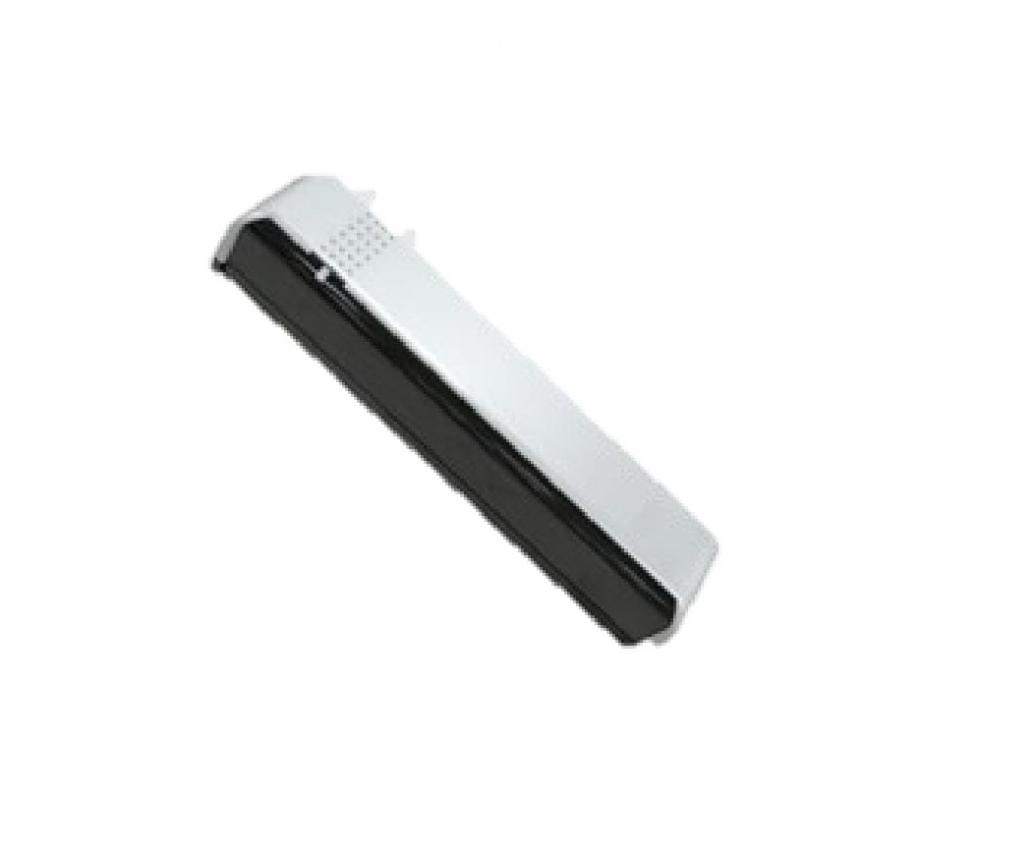

Amxon- MICROWAVE / INFRARED MOTION & INFRARED PRESENCE SENSOR
CNB-506/507
• Input Power Supply: AC/DC 12–30 V (±10%)
• Cable Length: 2.5 m
• Signal Output: Relay output
• One channel for activation
• One channel for anti-pinch protection
• Normally Open (NO) / Normally Closed (NC) selectable
• Maximum Installation Height: 3500 mm
• Current Consumption (Model 506 / 507):
• Standby: 43 mA / 25 mA
• Active: 115 mA / 100 mA
• Product Dimensions: 268 (L) × 61 (W) × 38 (H) mm (base not included)
• Power-on Self-Learning Time: Dynamic learning, stabilizes within 2 seconds
• Operating Temperature Range: -40°C to +60°C
• Maximum Detection Area (506 / 507):
• 506: 2500 (W) × 600 (D) mm
• 507: 2400 (W) × 1600 (D) mm
• Output Hold Time (506 / 507):
• Anti-pinch: 0.5 s
• Activation: 2 s
• Response Time: ≤ 100 ms
• Background Update Time: Selectable (15 s / 1 min / 30 min / ∞)
