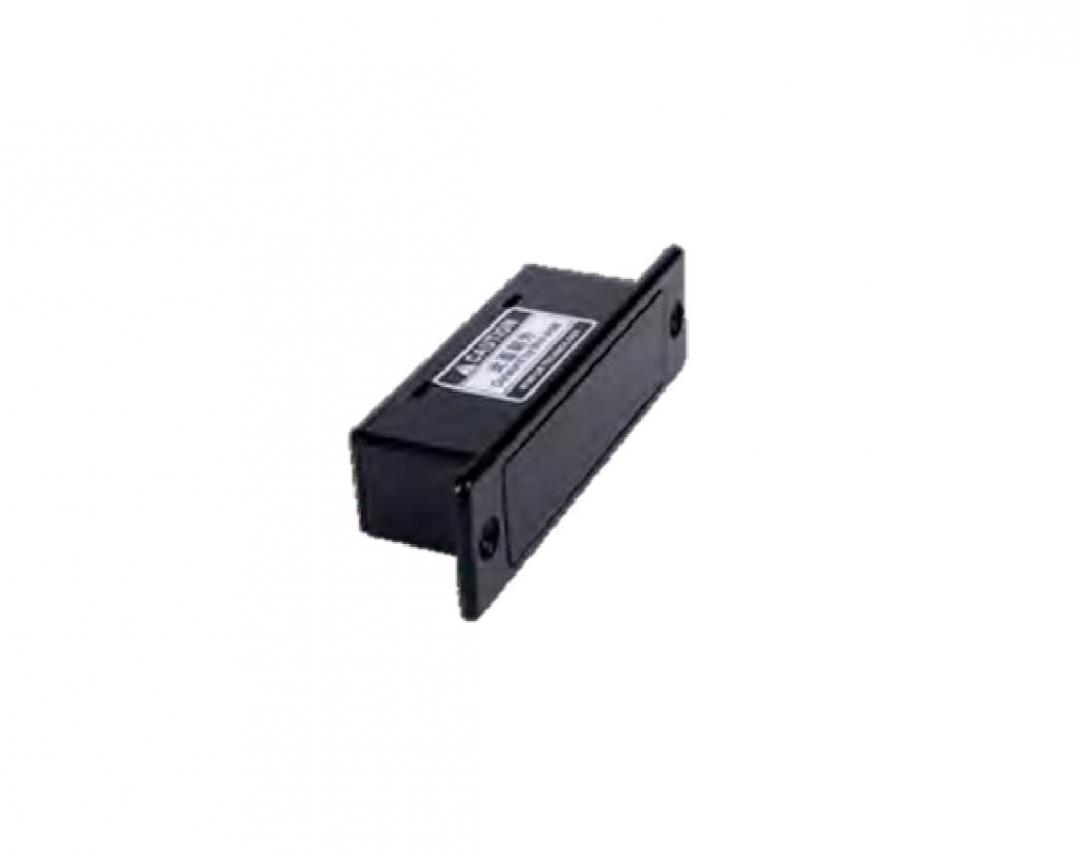

Amxon - SIDE/ PET Sensor
CNB-234/223
• Input Voltage: AC/DC 12–30 V
• Anti-Pinch Horizontal Distance (Model 223): Adjustable from 1–80 cm
• Sensing Distance (Model 234): 2000 mm
• Standby Power Consumption (234 / 223): 22 mA / 70 mA
• Active Current (234 / 223): 60 mA / 119 mA
• Scanning Beam Diameter: 40 mm
• Sensing Method: Infrared scanning

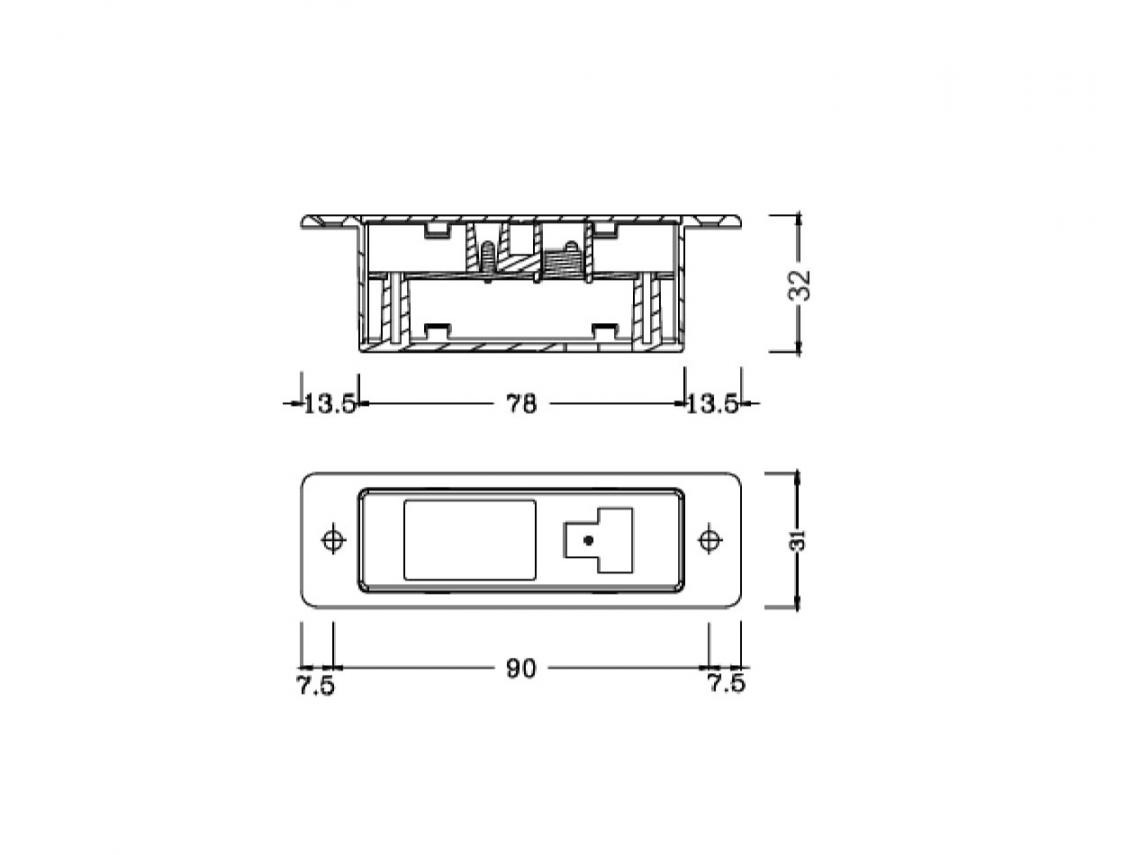

• Cut-out Size: 78 (L) × 24 (W) × 30 (D) mm
• Operating Environment: -20°C to +60°C
• Product Dimensions: 105 (L) × 31 (W) × 32 (D) mm
