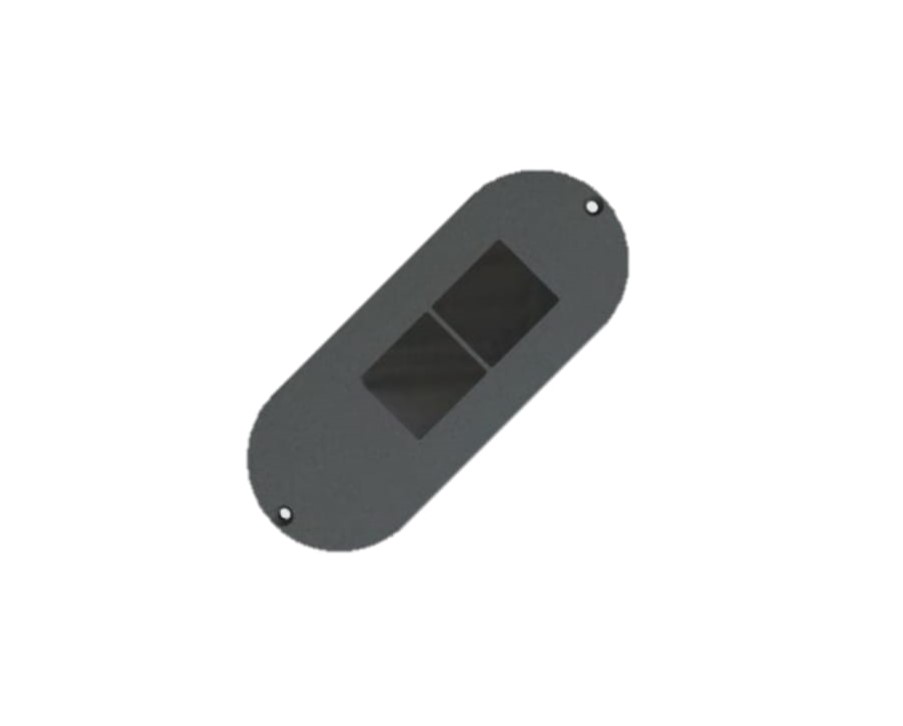

Amxon - Laser Safety Sensor
CNB-901
• Detection Principle: TOF (Time of Flight)
• Light Source: 890 nm infrared laser
• Laser Class: Class I eye-safe laser
• Detection Response Time: ≤ 50 ms
• Detection Distance: 80 cm – 1000 cm
• Operating Temperature: 20°C to 60°C
• Waterproof Rating: IP67
• Operating Voltage: AC/DC 12–30 V
• Operating Current:
• Standby: 52 mA
• Active: 74 mA (at 12 V supply)
• Signal Output: Relay output, Normally Open (NO) or Normally Closed (NC)
• Status Indicator: LED indicator
• Blue in standby mode
• Red when an object is detected
