Amxon - Laser Safety Curtain Sensor
CNB- 903
• Detection Principle: TOF (Time of Flight)
• Light Medium: 890 nm infrared laser
• Laser Class: Class I eye-safe laser
• Detection Response Time: ≤ 50 ms
• Detection Area Diameter: Single-point 100 mm spot (when installed at 2.8 m height)
• Detection Angle: Adjustable 5°–10°
• Detection Range: Minimum 30 cm above ground
• Maximum Installation Height: 350 cm
• Operating Voltage: AC/DC 12–30 V
• Operating Current: Standby 100 mA, Active 135 mA
• Signal Output: Relay normally open (NO) or normally closed (NC)
• Trigger Mode: Motion and stationary detection

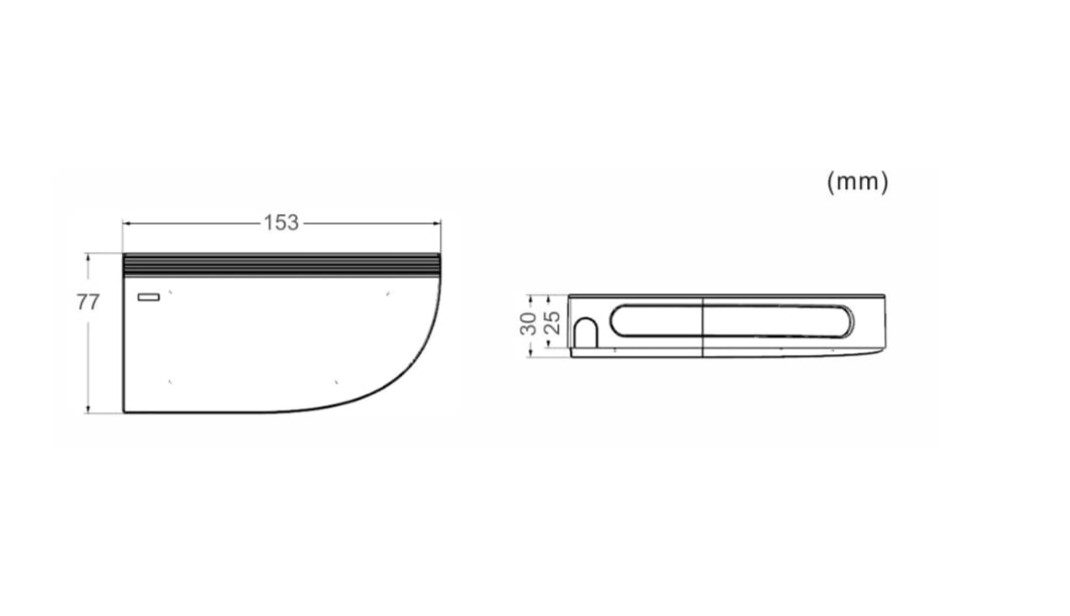

• Sensor Dimensions: 153 × 77 × 26.2 mm
