Panic Bolt

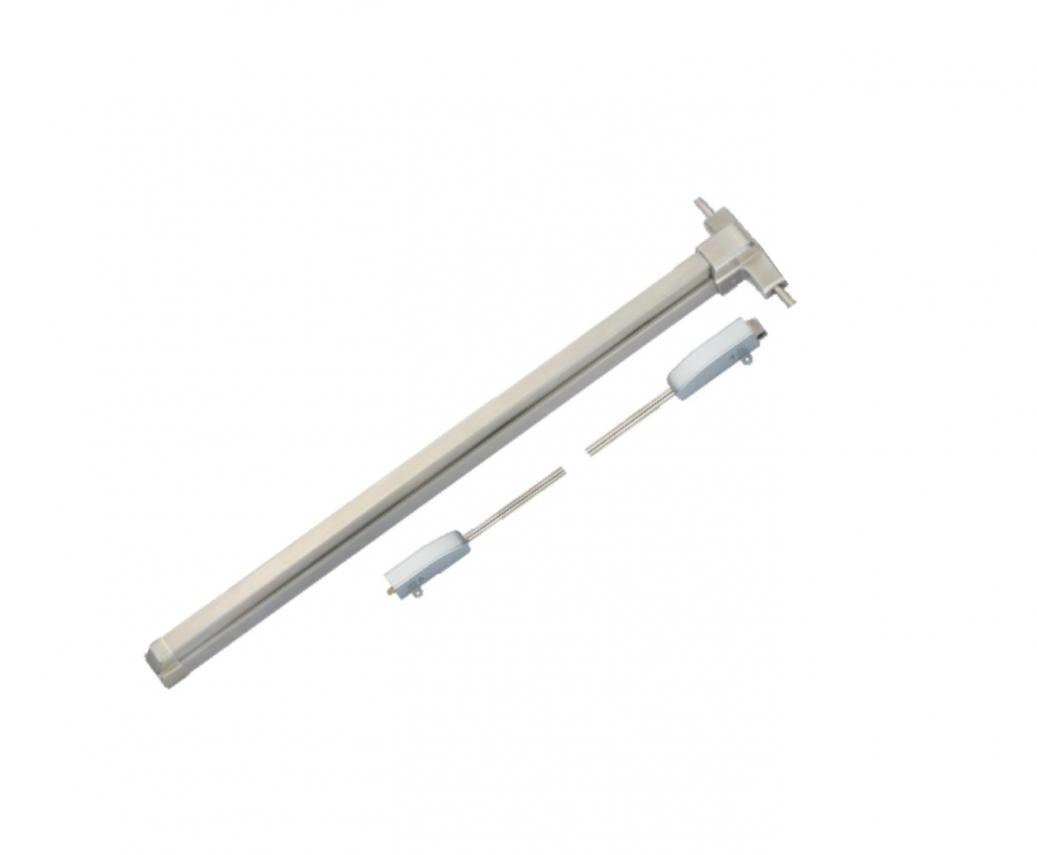

WIESS Stainless Steel Touch Bar Panic Device

CMP400 Series

Key Specs

• Construction: Full Grade SUS304 stainless steel
• Touchbar Type: Half-length (compact design)
• Compliance: CE & UL Listed | ANSI A156.3 Grade 1
• Applications: Suitable for container data centers, commercial buildings, and high-traffic exits

• Model Lock Points Door Width Compatibility Door Height Compatibility
• CMP401 1-point lock 24" (610 mm) Standard 84" (2134 mm)
• CMP406 2-point lock 36" (711–914 mm) Extension to 96" (2438 mm)
• CMP436 1-point lock 48" (864–1219 mm) Special to 120" (3048 mm)

• Door Thickness: 1¾" to 2¼" (44–57 mm) – compatible with wood or metal doors
• Trim Lock Cylinder: Cross shape
• Dogging: Hex key dogging for maintenance convenience
• Compatible Trims: CMPA004 / 104 / 401 / 410 / 420 / 801
