Panic Bolt

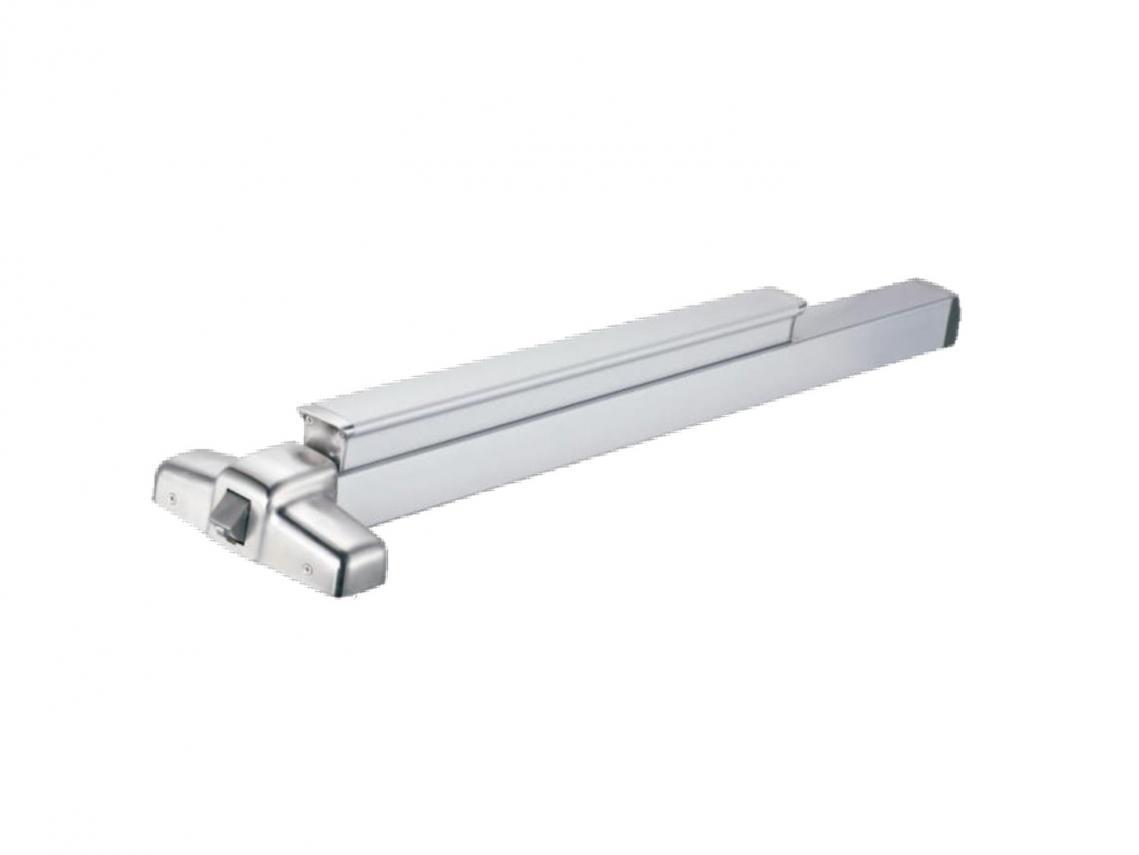

WIESS Stainless Steel Panic Bolt

CMP450 Series

Key Specs

• Construction: Full Grade SUS304 stainless steel (trim, latch, head)

• Touchbar: 600mm (standard)

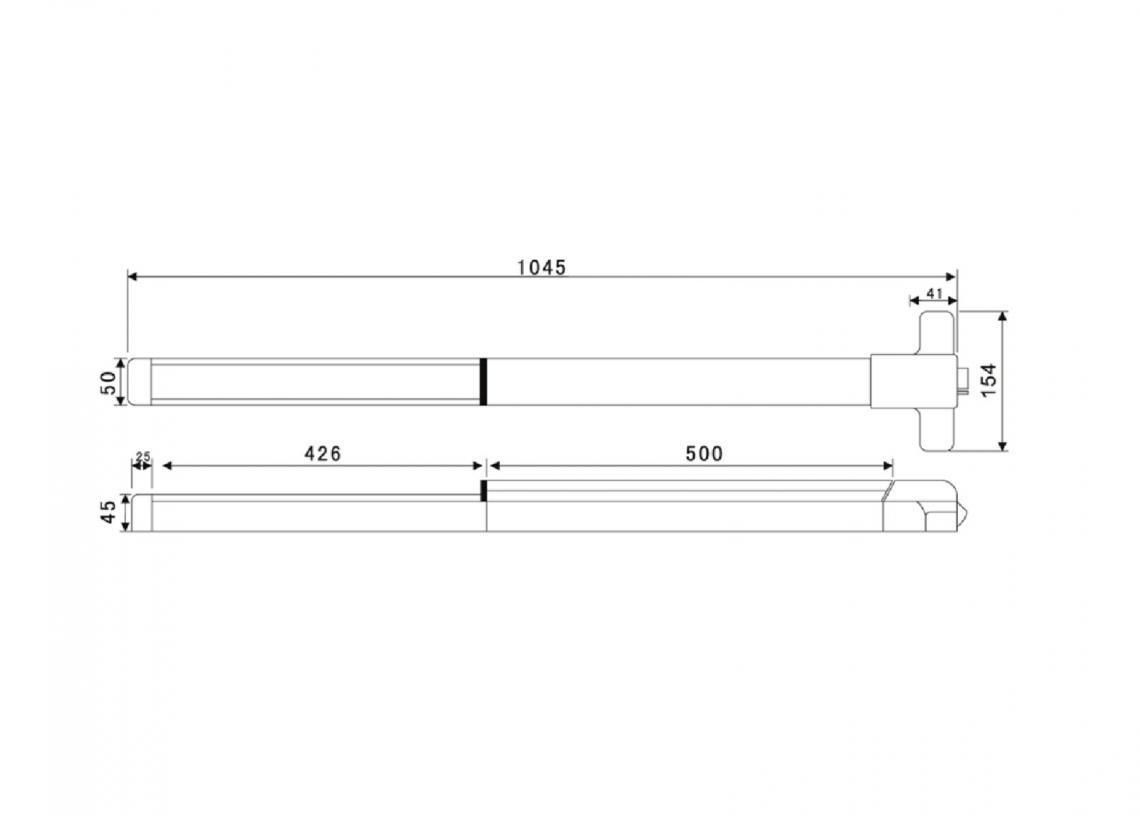

• Overall Length: 1045mm

• Finish: Satin stainless steel (US32D / ANSI 630)

• Handing: Non-handed

• Compliance: UL Listed | ANSI A156.3 Grade 1 | UL10C 3-Hour Fire Rated

• Cycles Tested: 1,000,000

Features & Benefits

• Low Opening Pressure: Under 5 daN – ideal for children, elderly, and disabled users

• Panic Function: Operates even under door load of 100 daN

• High Security: Deadlocking latch and bolts

• Fire Rated: UL10C 3-hour certification

• Anti-Thrust Latch: Prevents tampering

• External Locking: Lockable outside attachment, independent of touchbar

• Model Variant: CMP457 available with 2-point locking
