Door Hinges

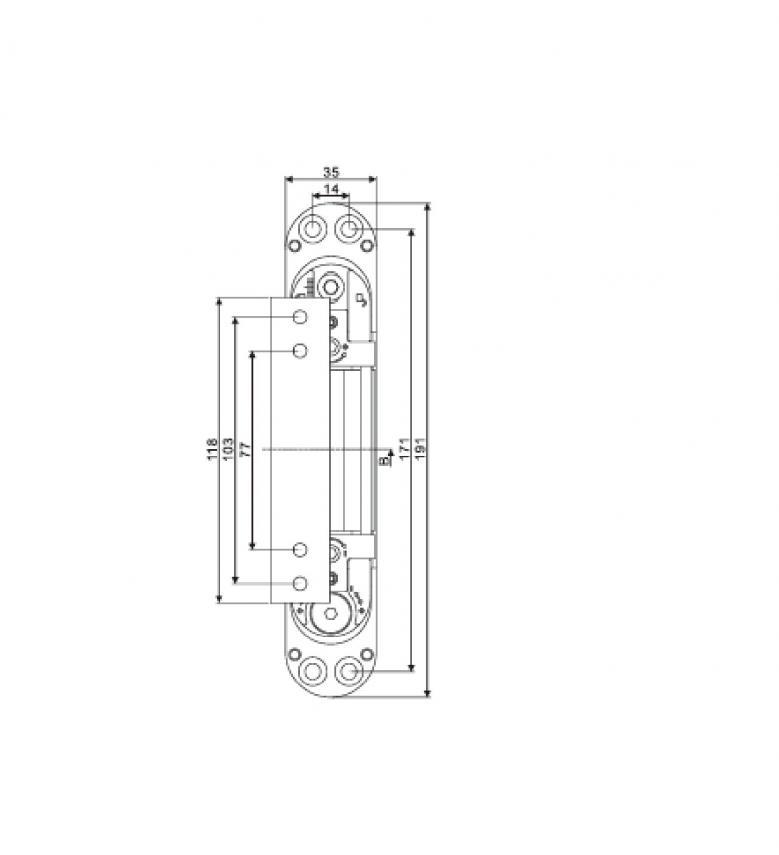

Amxon 3- Dimensional Concealed Hinge

ZCG120KG-C

Key Specs

• Adjustability: Vertical ±3mm | Depth ±1mm

• Capacity: Up to 80 kg (2 hinges)

• Opening: 120°

• Materials: Zinc Alloy Hinge Body | Aluminum Joiners | Stainless/Steel Spindles

• Finishes: Pearl Chrome, Nickel, Brass, Painting

• Min. Door Thickness: 45 mm

• Max. Door Width: 1400 mm

Features & Benefits

• 120° Opening Angle: Ideal for applications requiring limited swing

• Wide Door Compatibility: Suitable for doors up to 1400 mm width

• 2-Way Adjustable: Vertical ±3mm and Depth ±1mm for easy alignment

• Safe & Sleek: Minimal gap with built-in finger protection

• Versatile Application: Suitable for fire doors, security doors, and soundproof doors with wood, steel, or aluminum frames
