Door Hinges

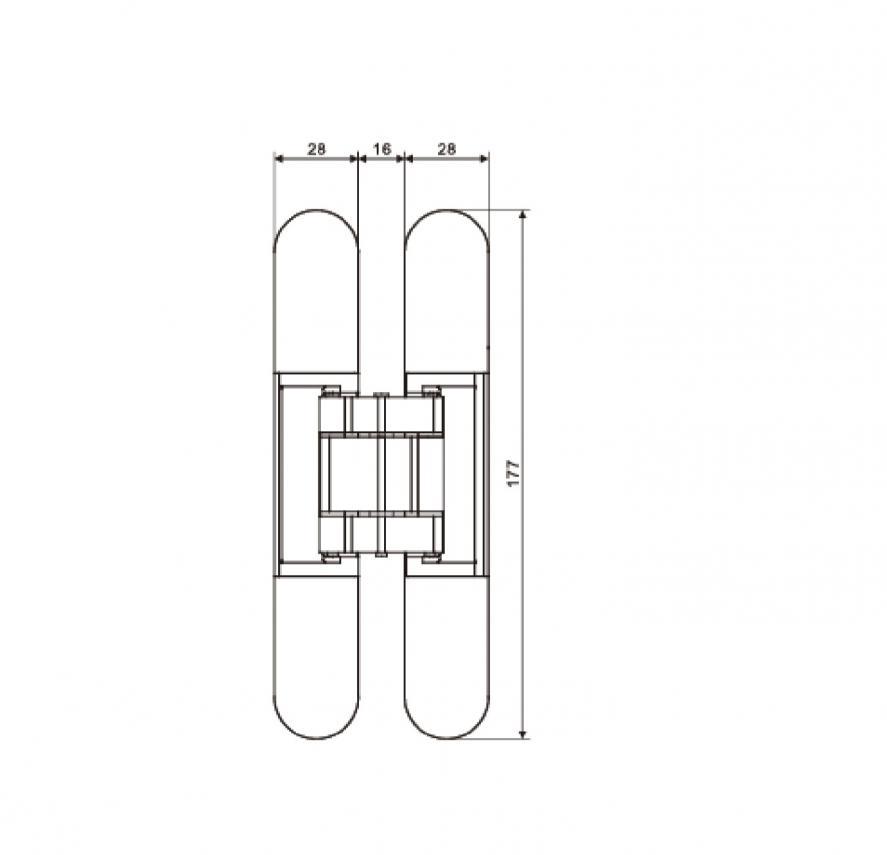

Amxon 3- Dimensional Concealed Hinge

ZCG80

Key Specs

• Adjustability: Vertical ±3mm | Horizontal ±2mm | Depth ±1mm

• Capacity: Up to 80 kg (2 hinges)

• Opening: 180°

• Materials: Zinc Alloy Hinge Body | Aluminum Joiners | Stainless/Steel Spindles

• Finishes: Pearl Chrome, Nickel, Brass, Painting

• Min. Door Thickness: 40 mm

• Max. Door Width: 1000 mm

Features & Benefits

• 80 kg Load Capacity: Reliable support for standard doors

• 3D Adjustable: Precision alignment in all directions

• Safe & Sleek: Minimal gap with built-in finger protection

• Versatile Application: Ideal for interior doors, offices, and light commercial use
