Door Hinges

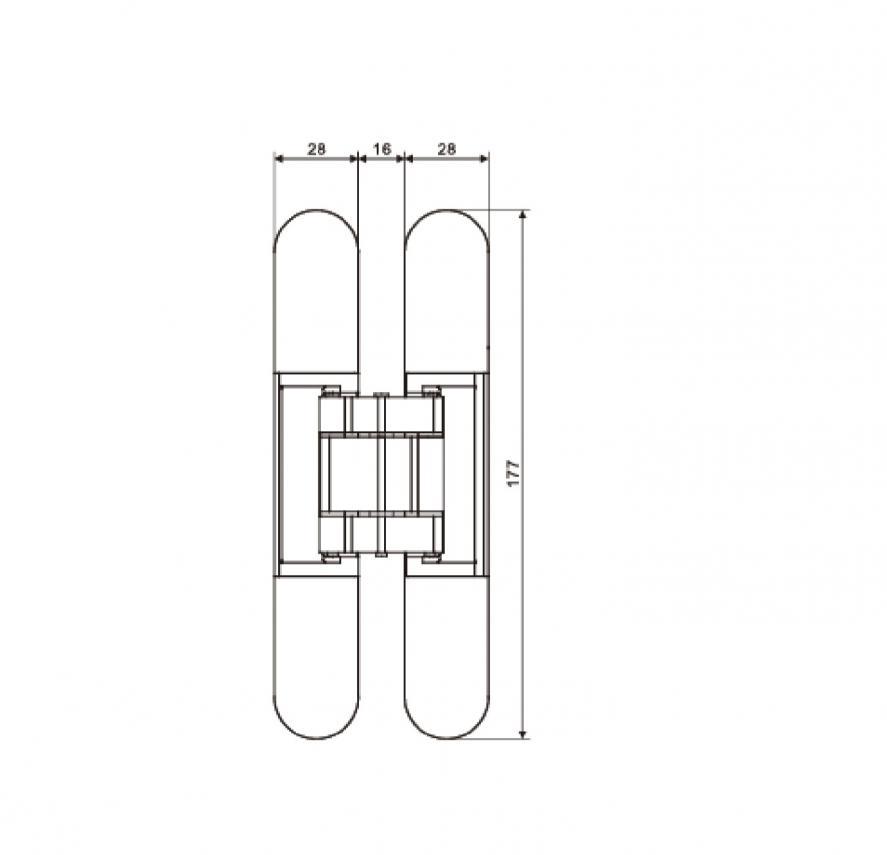

Amxon 3- Dimensional Concealed Hinge

ZCG40

Key Specs

• Adjustability: Vertical ±3mm | Horizontal ±2mm | Depth ±1mm

• Capacity: Up to 40 kg (2 hinges)

• Opening: 180°

• Materials: Zinc Alloy Hinge Body | Aluminum Joiners | Stainless/Steel Spindles

• Finishes: Pearl Chrome, Nickel, Brass, Painting

• Min. Door Thickness: 35 mm

• Max. Door Width: 850 mm

Features & Benefits

• Compact & Lightweight: Ideal for smaller or lighter door applications

• 3D Adjustable: ±3mm vertical, ±2mm horizontal, ±1mm depth for easy alignment

• Safe & Sleek: Minimal gap with built-in finger protection

• Versatile Use: Suitable for interior doors, cupboards, and light-duty commercial applications
