Door Hinges

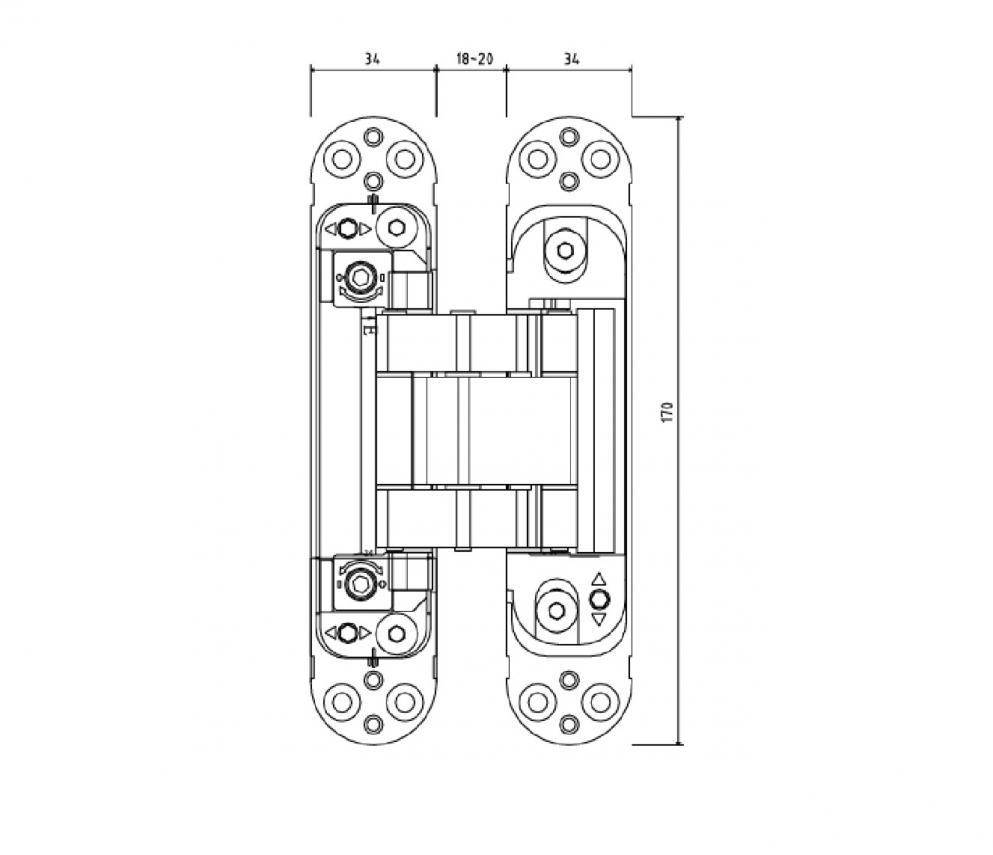

Amxon- 3 Dimensional Stainless Steel Concealed Hinge

HY80KG-F

Key Specs

• Adjustability: Vertical ±3mm | Horizontal ±2.5mm | Depth ±1mm

• Capacity: Up to 100 kg (2 hinges)

• Opening: 180°

• Materials: Full Stainless Steel construction (Hinge Body, Joiners & Spindles)

• Finishes: Pearl Chrome, Nickel, Brass, Painting

• Min. Door Thickness: 40 mm

• Max. Door Width: 1200 mm

Features & Benefits

• 100 kg Load Capacity: Handles heavy doors with ease

• All Stainless Steel: Maximum durability and corrosion resistance

• 3D Adjustable: ±3mm vertical, ±2.5mm horizontal, ±1mm depth for precision alignment

• Safe & Sleek: Minimal gap design with built-in finger protection

• Versatile Application: Ideal for fire doors, security doors, and soundproof doors with wood, steel, or aluminum frames
