Door Hinges

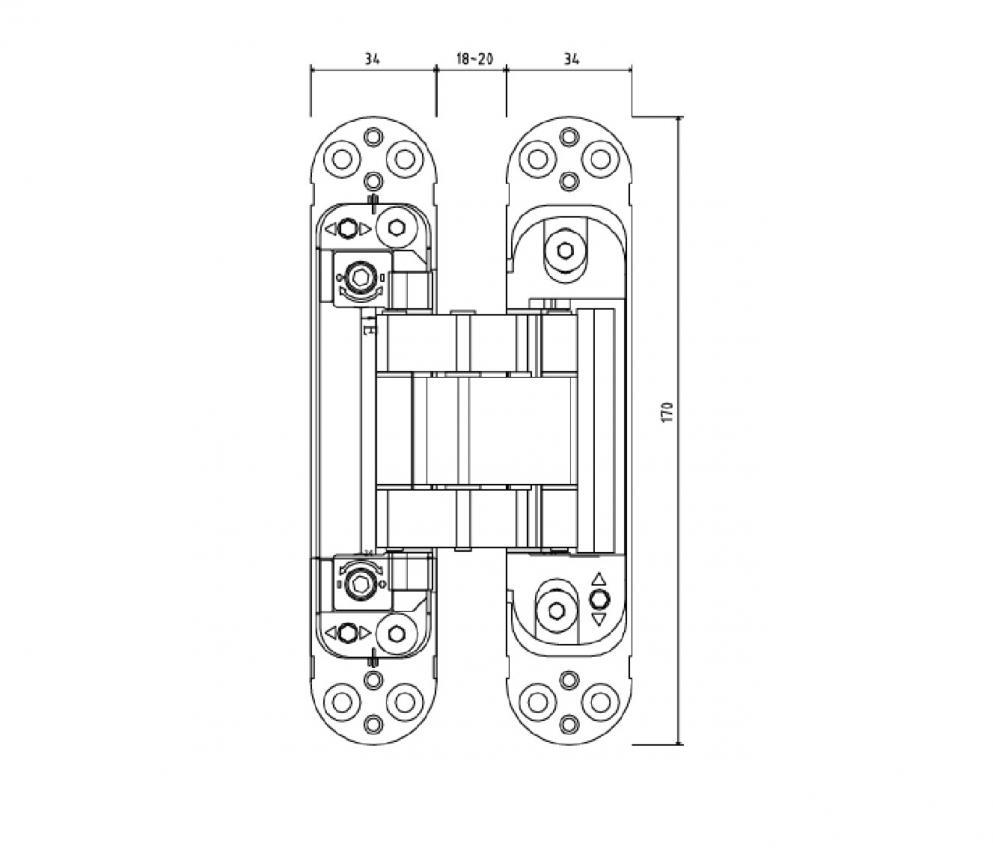

Amxon 3- Dimensional Concealed Hinge

HY100KG-C

Key Specs

• Adjustability: Vertical ±3mm | Horizontal ±2.5mm | Depth ±1mm

• Capacity: Up to 80 kg (2 hinges)

• Opening: 180°

• Materials: Zinc Alloy Body | Aluminum Joiners | Stainless/Steel Spindles

• Finishes: Pearl Chrome, Nickel, Brass, Painting

• Min. Door Thickness: 40 mm

Features & Benefits

• 3D Adjustable: For perfect alignment during and after installation.

• Concealed & Sleek: Minimal gap for a clean look and built-in finger protection.

• Heavy-Duty: Supports large doors up to 1000 mm wide.

• Versatile: Ideal for fire, security, and soundproof doors with wood, steel, or aluminum frames.
